138
Chapter 5 Working With Digital Spatial Data and GIS
Question 5.4 What linear units and datum are used by the Lambert
Conformal Conic projection?
8. Click Apply to make the changes, and then click OK to close the dialog
box.
9. Back in the View, you’ll see that the appearance of the three layers
has completely changed from the flat GCS projection to the curved
LCC projection. You could select other projections for the Data Frame
if you wish. Try out some other appearances—when you’re done,
return to the Lambert Conformal Conic projection for the remainder of
the Lab.

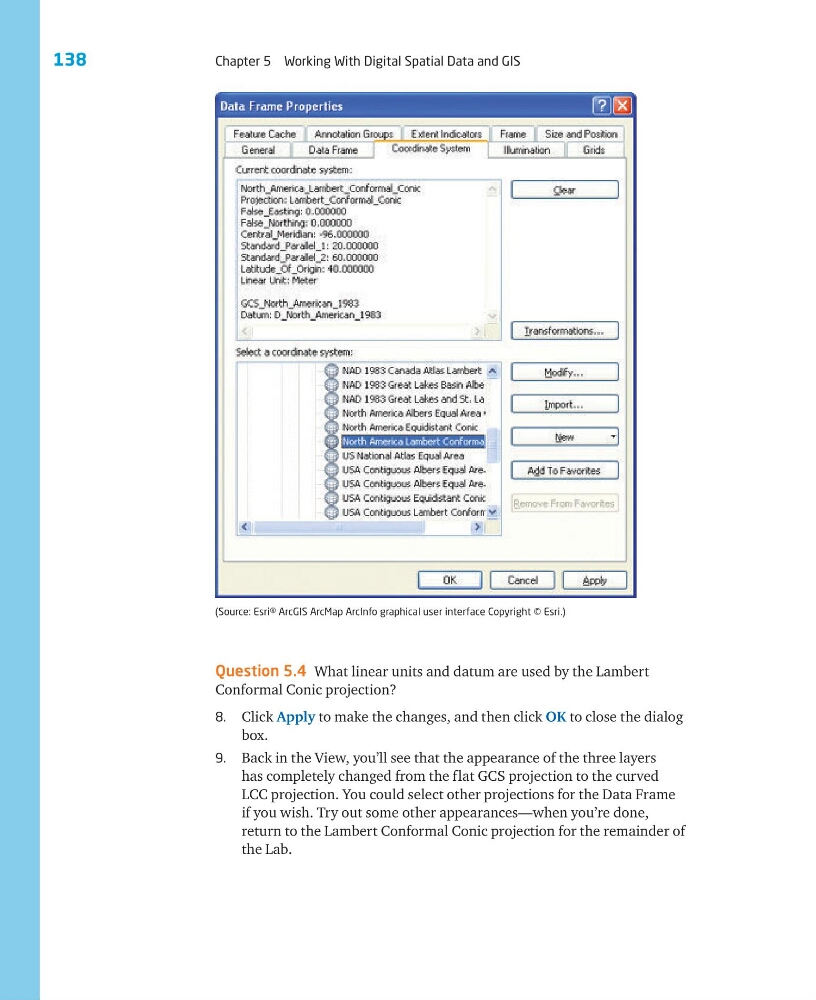

(Source: Esri® ArcGIS ArcMap ArcInfo graphical user interface Copyright © Esri.)
