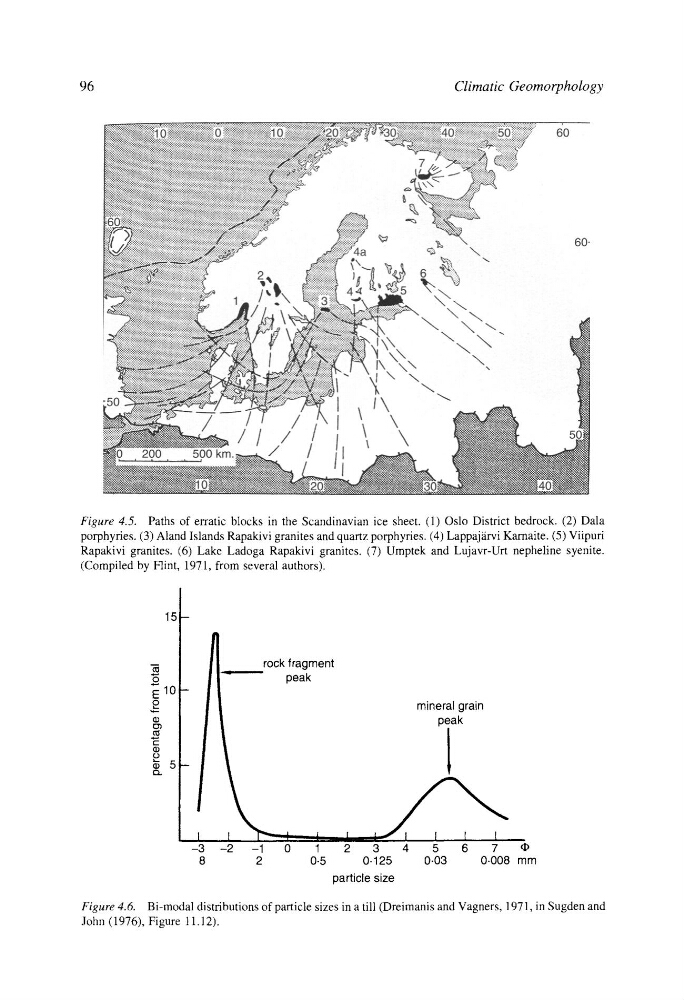

Figure 4.5. Paths of erratic blocks in the Scandinavian ice sheet. (1) Oslo District bedrock. (2) Dala
porphyries. (3) Aland Islands Rapakivi granites and quartz porphyries. (4) Lappaj~irvi Karnaite. (5) Viipuri
Rapakivi granites. (6) Lake Ladoga Rapakivi granites. (7) Umptek and Lujavr-Urt nepheline syenite.
(Compiled by Flint, 1971, from several authors).
1
rock fragment
5
peak
mineral grain
peak
' I I i/
I ! >
-3 -2 -1
0
1
2
3
4
5
6
7
8
2
0.5
0.125
0.03
0.008 mm
particle size
Figure 4.6. B i-modal distributions of particle sizes in a till (Dreimanis and Vagners, 1971, in Sugden and
John (1976), Figure 11.12).
