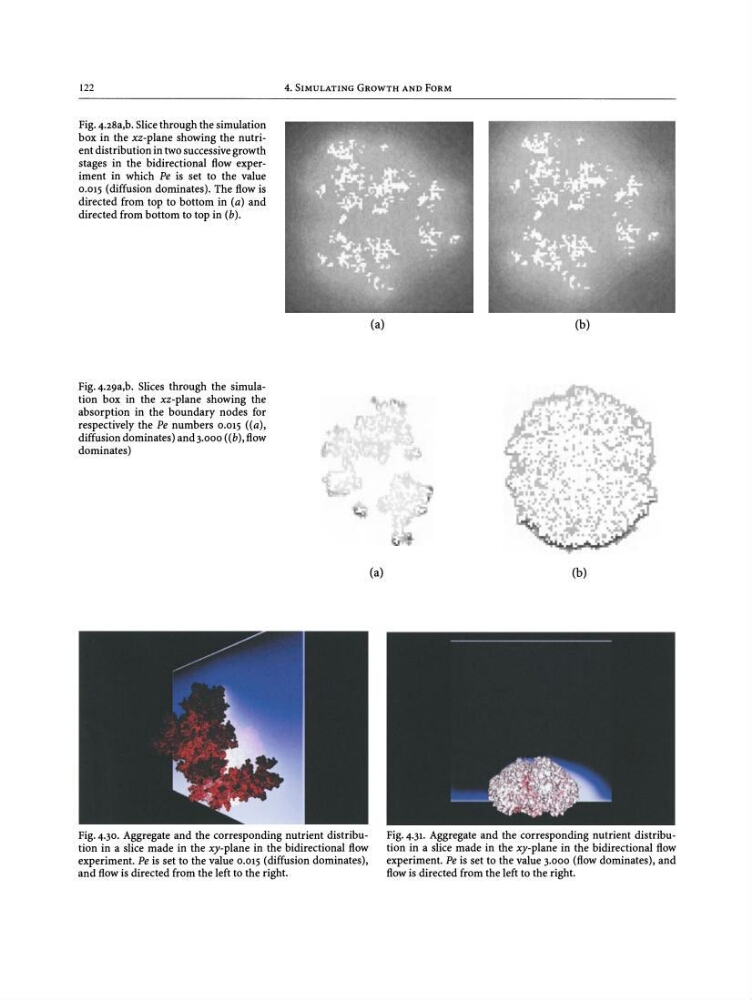

Fig. 4.28a,b. Slicethrough the simulation
box in the xz-plane showing the nutrient distribution in two successivegrowth
stages in the bidirectional flow experiment in which Pe is set to the value
0.015 (diffusion dominates). The flow is
directed from top to bottom in (a) and
directed from bottom to top in (b) .
Fig.4.29a,b. Slices through the simulation box in the xz-plane showing the
absorption in the boundary nodes for
respectively the Pe numbers 0.015 «a),
diffusion dominates) and3.000 «b), flow
dominates)
4 . SIMULATING GROWTH AND FORM
(a)
(a)
(b)
(b)
Fig. 4.30. Aggregate and the corresponding nutrient distribution in a slice made in the xy-plane in the bidirectional flow
experiment. Pe is set to the value 0.015 (diffusion dominates),
and flowis directed from the left to the right.
Fig. 4.31. Aggregate and the corresponding nutrient distribution in a slice made in the xy-plane in the bidirectional flow
experiment. Pe is set to the value 3.000 (flow dominates), and
flowis directed from the left to the right.
