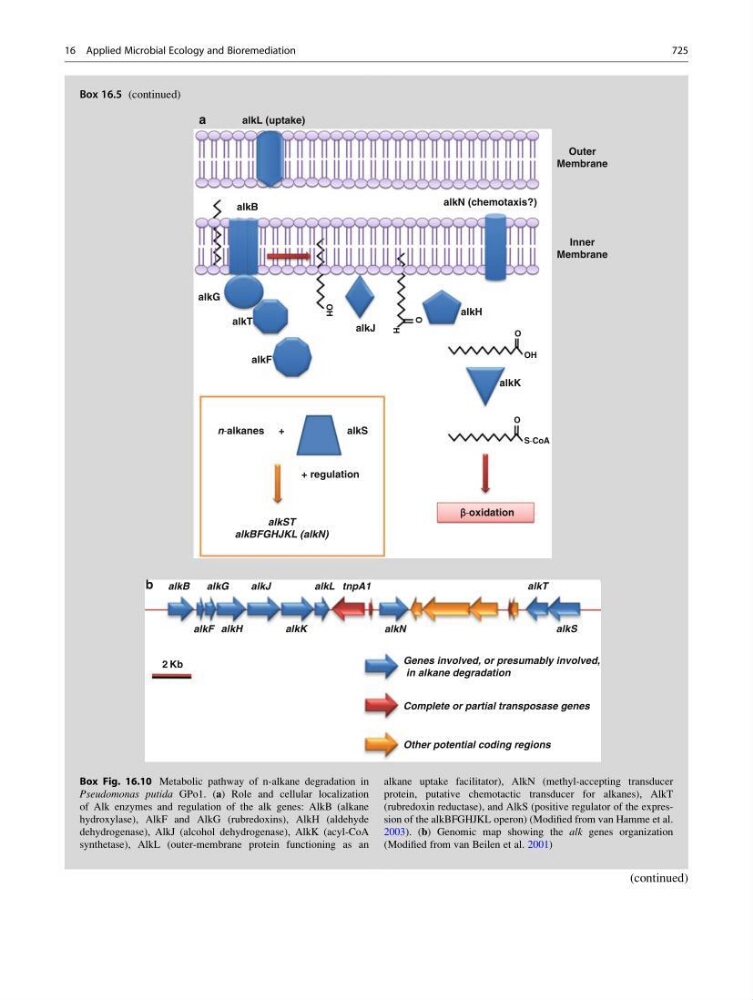

Box Fig. 16.10 Metabolic pathway of n-alkane degradation in
Pseudomonas putida GPo1. (a) Role and cellular localization
of Alk enzymes and regulation of the alk genes: AlkB (alkane
hydroxylase), AlkF and AlkG (rubredoxins), AlkH (aldehyde
dehydrogenase), AlkJ (alcohol dehydrogenase), AlkK (acyl-CoA
synthetase), AlkL (outer-membrane protein functioning as an
alkane uptake facilitator), AlkN (methyl-accepting transducer
protein, putative chemotactic transducer for alkanes), AlkT
(rubredoxin reductase), and AlkS (positive regulator of the expression of the alkBFGHJKL operon) (Modified from van Hamme et al.
2003). (b) Genomic map showing the alk genes organization
(Modified from van Beilen et al. 2001)
