547
concern the two classes for which we also read confusions in the previous matrices:
reed on compact plaur and pure reed vegetation.
17.7.6 Temporal Intensity Radar Data Signature
Our analysis will primarily address the different reed classes (Figs. 17.19 and
17.20).
On average, the temporal variation is similar whatever the polarization, VV or
VH; from 2014 November to 2015 January, the radiometry is not really changing
because at this period the landscape is not changing very much. In March in early

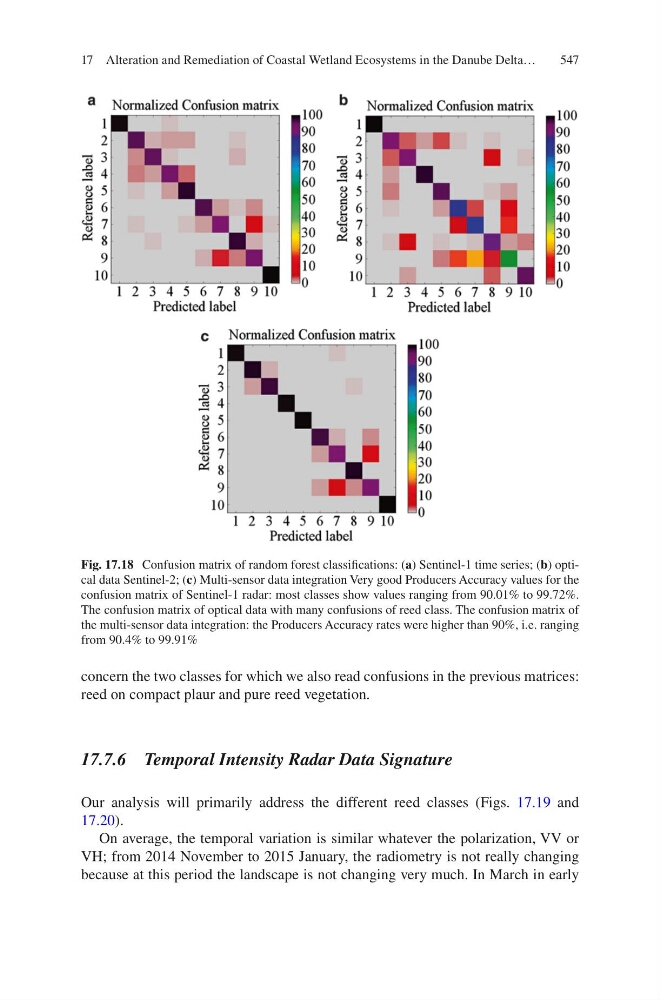

Fig. 17.18 Confusion matrix of random forest classifications: (a) Sentinel-1 time series; (b) optical data Sentinel-2; (c) Multi-sensor data integration Very good Producers Accuracy values for the
confusion matrix of Sentinel-1 radar: most classes show values ranging from 90.01% to 99.72%.
The confusion matrix of optical data with many confusions of reed class. The confusion matrix of
the multi-sensor data integration: the Producers Accuracy rates were higher than 90%, i.e. ranging
from 90.4% to 99.91%
17 Alteration and Remediation of Coastal Wetland Ecosystems in the Danube Delta…
