114
A. K. LIU AND C. Y. PENG
Since convolution is commutative with respect to differentiation, the resulting wavelet
transform is the Laplacian of a Gaussian smoothed function. Thus, its zeroes correspond to the inflection points of the original function (Canny 1986). The contours of
zero crossing indicate the edges in the pattern of the input function. The detailed procedure of wavelet analysis is discussed in the following section.
6.3
Wavelet Analysis for Ice Feature Tracking

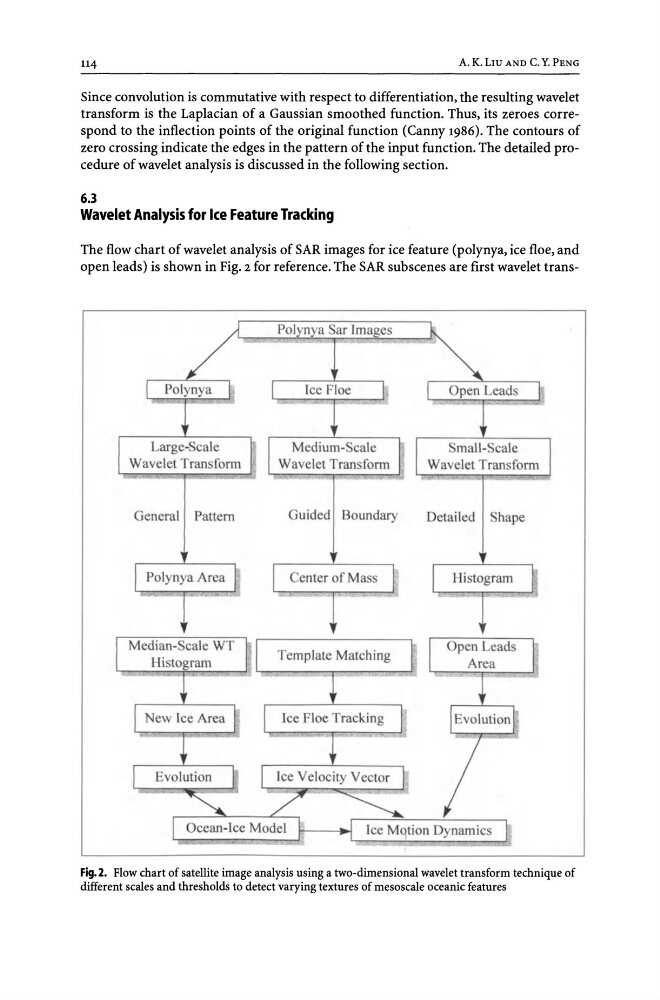

The flow chart of wavelet analysis of SAR images for ice feature (polynya, ice floe, and
open leads) is shown in Fig. 2 for reference. The SAR subscenes are first wavelet transGeneral Pattern
Guided Boundary
Detailed Shape
Fig.2. Flow chart of satellite image analysis using a two-dimensional wavelet transform technique of
different scales and thresholds to detect varying textures of mesoscale oceanic features
