Columnar Model Ice
The tests of the columnar model ice beams have shown three typical patterns of the
beam failure depending on the relative lengths of the beams: failure pattern of long
beam (
L
h = 6.7Þ featured flexural cracks (Fig. 15a); medium length beams (
L
h = 4.9
and
L
h = 3.3) showed a combination of cracking types: flexural crack at a fixed end
Initial stage of penetration of
indenter
Time moment: 15.5 sec
Indentation process
Time moment: 17.7 s
Flexural cracks in mid-section
and in cornes
Time moment: 18.1 s

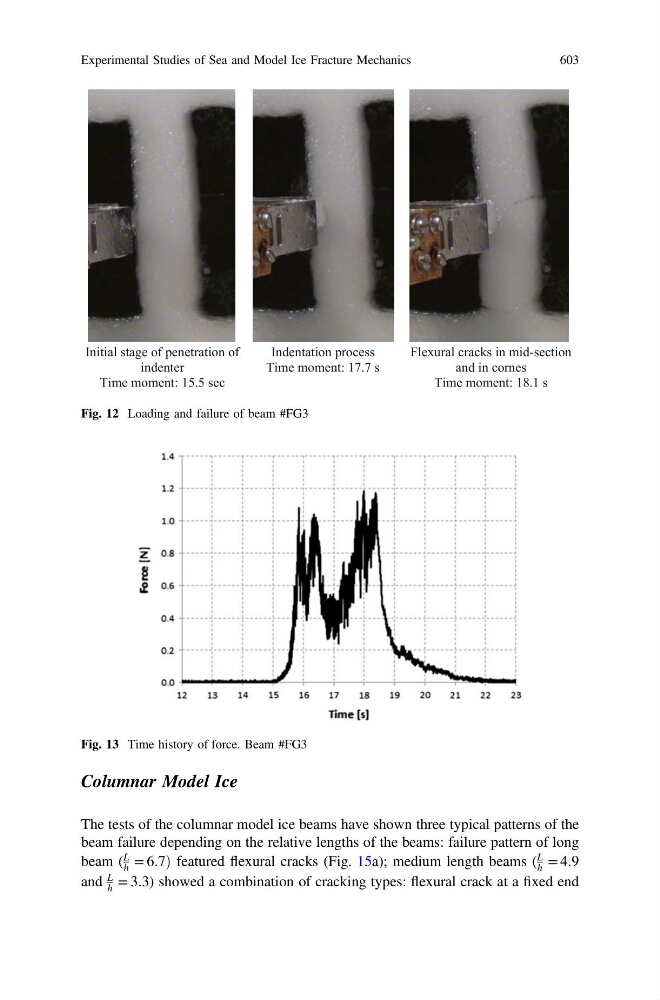

Fig. 12 Loading and failure of beam #FG3
Fig. 13 Time history of force. Beam #FG3
Experimental Studies of Sea and Model Ice Fracture Mechanics
603
