M. Hallikainen

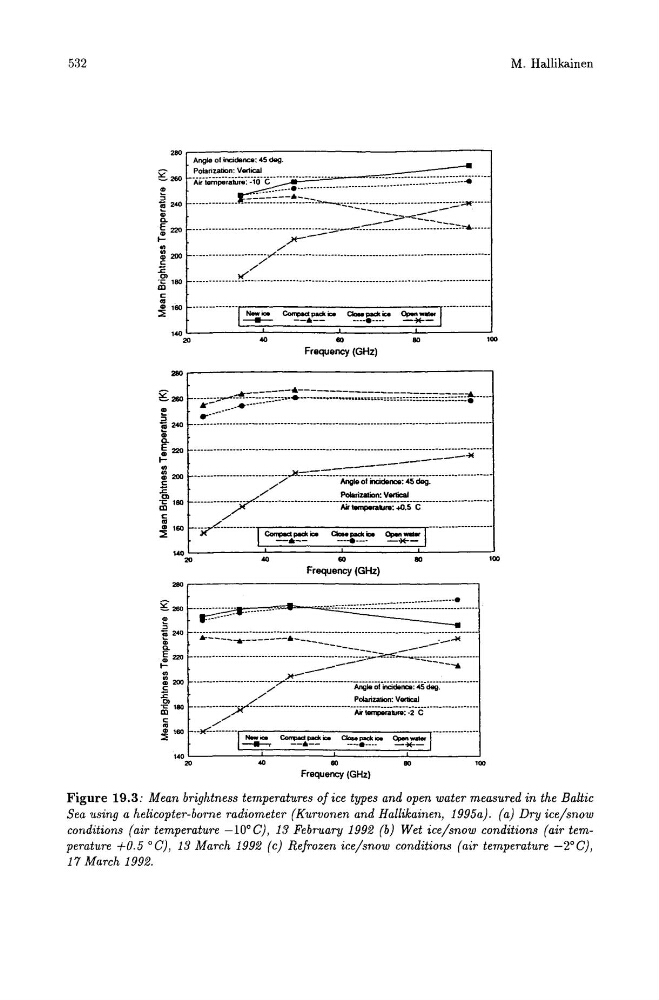

Figure 19.3: Mean brightness temperatures of ice types and open water measured in the Baltic
Sea using a helicopter-borne radiometer (Kurvonen and Hallikainen, 1995a). (a) Dry ice/snow
conditions (air temperature _lOa C), 13 February 1992 (b) Wet ice/snow conditions (air temperature +0.5 °C), 13 March 1992 (c) Refrozen ice/snow conditions (air temperature -2°C),
17 March 1992.
