437
layer 2
layer 2

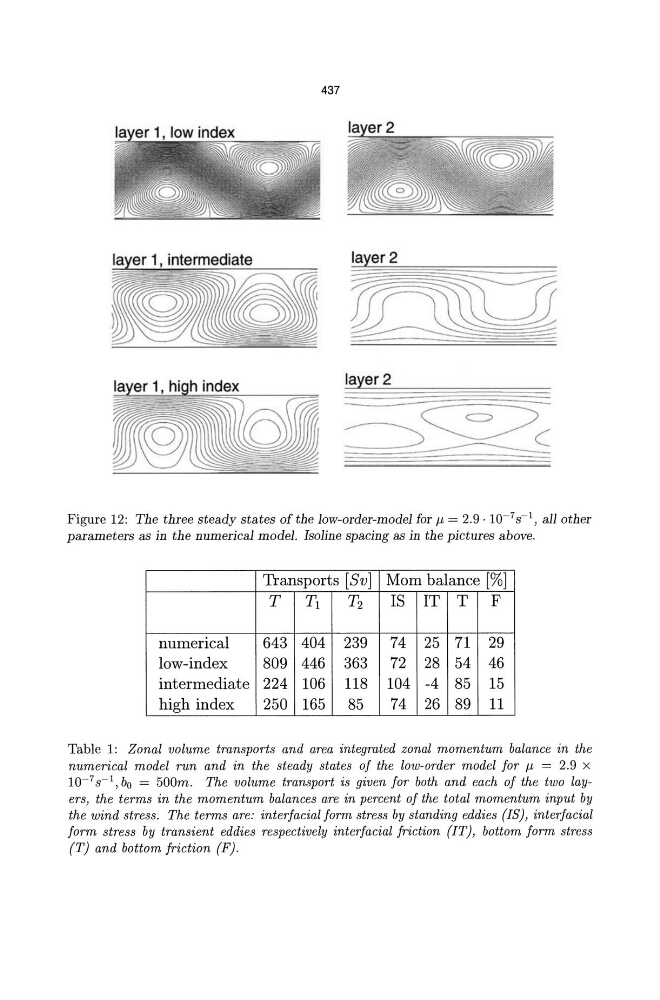

Figure 12: The three steady states of the low-order-model for jJ, = 2.9 . 10- 7 S- I, all other
parameters as in the numerical model. Isoline spacing as in the pictures above.
Transports [Sv] Mom balance [%]
T
Tl
T2
IS IT T F
numerical
643 404 239 74 25 71 29
low-index
809 446 363 72 28 54 46
intermediate 224 106 118 104 -4 85 15
high index
250 165 85
74 26 89 11
Table 1: Zonal volume transports and area integrated zonal momentum balance in the
numerical model run and in the steady states of the low-order model for jJ, = 2.9 X
10- 7 S - I, bo = 500m . The volume transport is given for both and each of the two layers, the terms in the momentum balances are in percent of the total momentum input by
the wind stress. The terms are: interfacial form stress by standing eddies (IS) , interfacial
form stress by transient eddies respectively interfacial friction (IT), bottom form stress
(T) and bottom friction (F).
