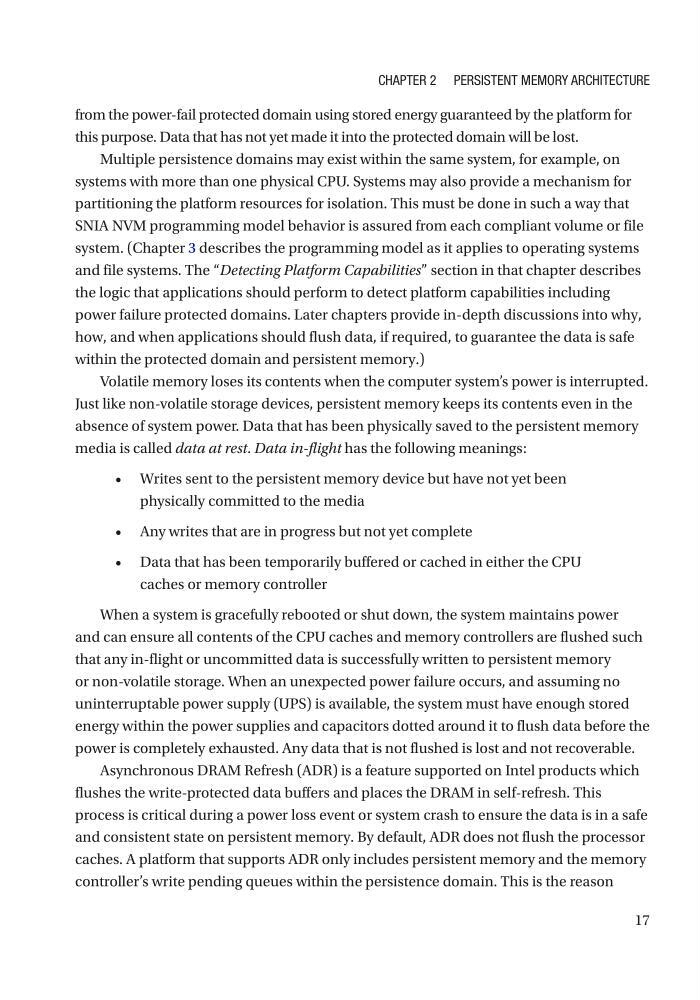

17
from the power-fail protected domain using stored energy guaranteed by the platform for
this purpose. Data that has not yet made it into the protected domain will be lost.
Multiple persistence domains may exist within the same system, for example, on
systems with more than one physical CPU. Systems may also provide a mechanism for
partitioning the platform resources for isolation. This must be done in such a way that
SNIA NVM programming model behavior is assured from each compliant volume or file
system. (Chapter 3 describes the programming model as it applies to operating systems
and file systems. The “Detecting Platform Capabilities” section in that chapter describes
the logic that applications should perform to detect platform capabilities including
power failure protected domains. Later chapters provide in-depth discussions into why,
how, and when applications should flush data, if required, to guarantee the data is safe
within the protected domain and persistent memory.)
Volatile memory loses its contents when the computer system’s power is interrupted.
Just like non-volatile storage devices, persistent memory keeps its contents even in the
absence of system power. Data that has been physically saved to the persistent memory
media is called data at rest. Data in-flight has the following meanings:
• Writes sent to the persistent memory device but have not yet been
physically committed to the media
• Any writes that are in progress but not yet complete
• Data that has been temporarily buffered or cached in either the CPU
caches or memory controller
When a system is gracefully rebooted or shut down, the system maintains power
and can ensure all contents of the CPU caches and memory controllers are flushed such
that any in-flight or uncommitted data is successfully written to persistent memory
or non-volatile storage. When an unexpected power failure occurs, and assuming no
uninterruptable power supply (UPS) is available, the system must have enough stored
energy within the power supplies and capacitors dotted around it to flush data before the
power is completely exhausted. Any data that is not flushed is lost and not recoverable.
Asynchronous DRAM Refresh (ADR) is a feature supported on Intel products which
flushes the write-protected data buffers and places the DRAM in self-refresh. This
process is critical during a power loss event or system crash to ensure the data is in a safe
and consistent state on persistent memory. By default, ADR does not flush the processor
caches. A platform that supports ADR only includes persistent memory and the memory
controller’s write pending queues within the persistence domain. This is the reason
Chapter 2 persistent MeMory arChiteCture
