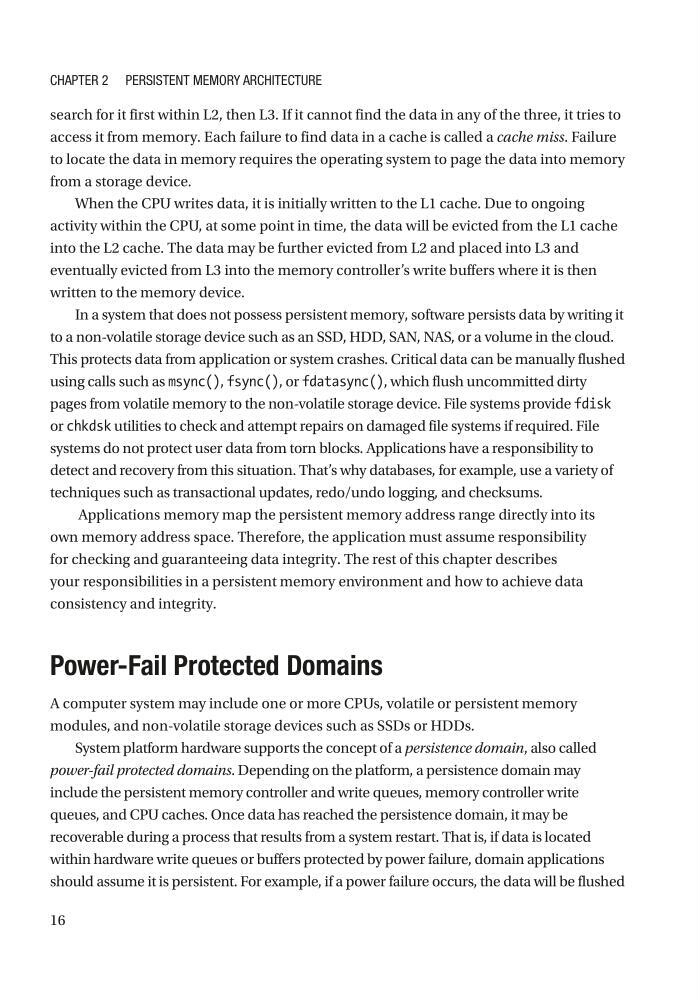

search for it first within L2, then L3. If it cannot find the data in any of the three, it tries to
access it from memory. Each failure to find data in a cache is called a cache miss. Failure
to locate the data in memory requires the operating system to page the data into memory
from a storage device.
When the CPU writes data, it is initially written to the L1 cache. Due to ongoing
activity within the CPU, at some point in time, the data will be evicted from the L1 cache
into the L2 cache. The data may be further evicted from L2 and placed into L3 and
eventually evicted from L3 into the memory controller’s write buffers where it is then
written to the memory device.
In a system that does not possess persistent memory, software persists data by writing it
to a non-volatile storage device such as an SSD, HDD, SAN, NAS, or a volume in the cloud.
This protects data from application or system crashes. Critical data can be manually flushed
using calls such as msync(), fsync(), or fdatasync(), which flush uncommitted dirty
pages from volatile memory to the non-volatile storage device. File systems provide fdisk
or chkdsk utilities to check and attempt repairs on damaged file systems if required. File
systems do not protect user data from torn blocks. Applications have a responsibility to
detect and recovery from this situation. That’s why databases, for example, use a variety of
techniques such as transactional updates, redo/undo logging, and checksums.
Applications memory map the persistent memory address range directly into its
own memory address space. Therefore, the application must assume responsibility
for checking and guaranteeing data integrity. The rest of this chapter describes
your responsibilities in a persistent memory environment and how to achieve data
consistency and integrity.
Power-Fail Protected Domains
A computer system may include one or more CPUs, volatile or persistent memory
modules, and non-volatile storage devices such as SSDs or HDDs.
System platform hardware supports the concept of a persistence domain, also called
power-fail protected domains. Depending on the platform, a persistence domain may
include the persistent memory controller and write queues, memory controller write
queues, and CPU caches. Once data has reached the persistence domain, it may be
recoverable during a process that results from a system restart. That is, if data is located
within hardware write queues or buffers protected by power failure, domain applications
should assume it is persistent. For example, if a power failure occurs, the data will be flushed
Chapter 2 persistent MeMory arChiteCture
