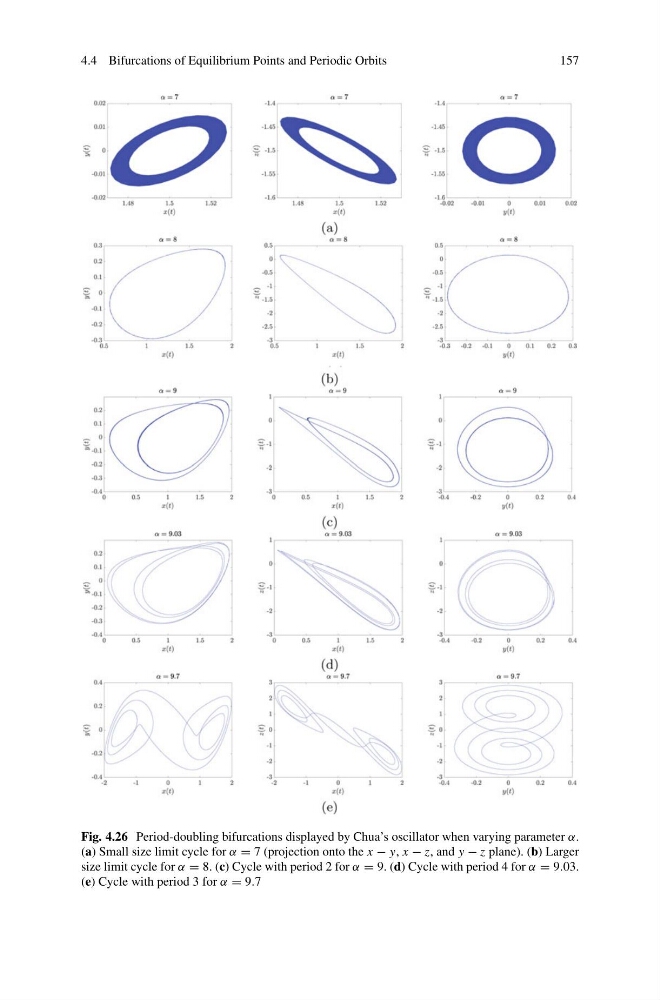

Fig. 4.26 Period-doubling bifurcations displayed by Chua’s oscillator when varying parameter α.
(a) Small size limit cycle for α = 7 (projection onto the x − y, x − z, and y − z plane). (b) Larger
size limit cycle for α = 8. (c) Cycle with period 2 for α = 9. (d) Cycle with period 4 for α = 9.03.
(e) Cycle with period 3 for α = 9.7
