P. Huang et al.

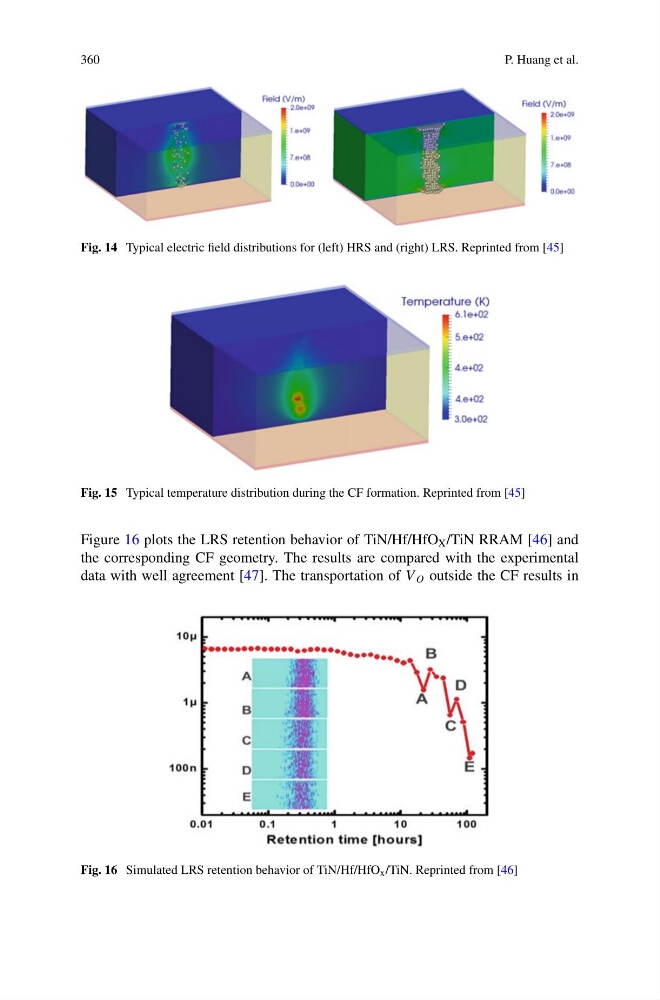

Fig. 14 Typical electric field distributions for (left) HRS and (right) LRS. Reprinted from [45]
Fig. 15 Typical temperature distribution during the CF formation. Reprinted from [45]
Figure 16 plots the LRS retention behavior of TiN/Hf/HfO X /TiN RRAM [46] and
the corresponding CF geometry. The results are compared with the experimental
data with well agreement [47]. The transportation of V O outside the CF results in
