3.1 Hooke Model
73
a)
t
(tmax = 100× 0.1 max,min = ± 5.0)
b)
t
σ
(tmax = 100× 0.1 σmax,min = ± 5.0)
c)
t
(tmax = 100× 0.1 max,min = ± 5.0)
d)
t
σ
(tmax = 100× 0.1 σmax,min = ± 5.0)
e)
t
(tmax = 100× 0.1 max,min = ± 5.0)
f)
t
σ
(tmax = 100× 0.1 σmax,min = ± 5.0)

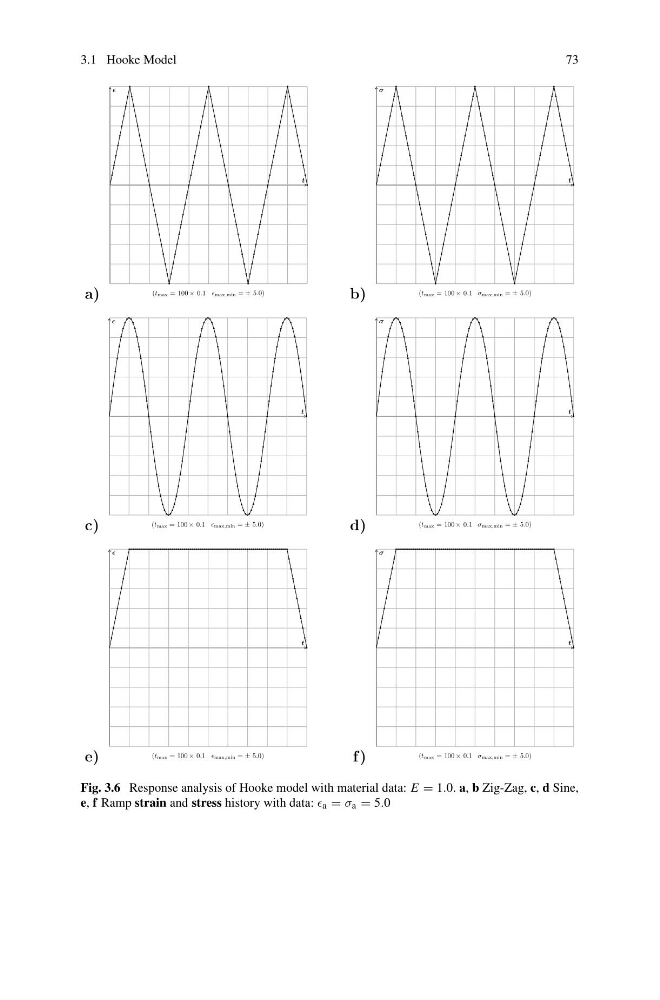

Fig. 3.6 Response analysis of Hooke model with material data: E = 1.0. a, b Zig-Zag, c, d Sine,
e, f Ramp strain and stress history with data: a = σ a = 5.0
