1.2 Compositions of Rheological Models
7

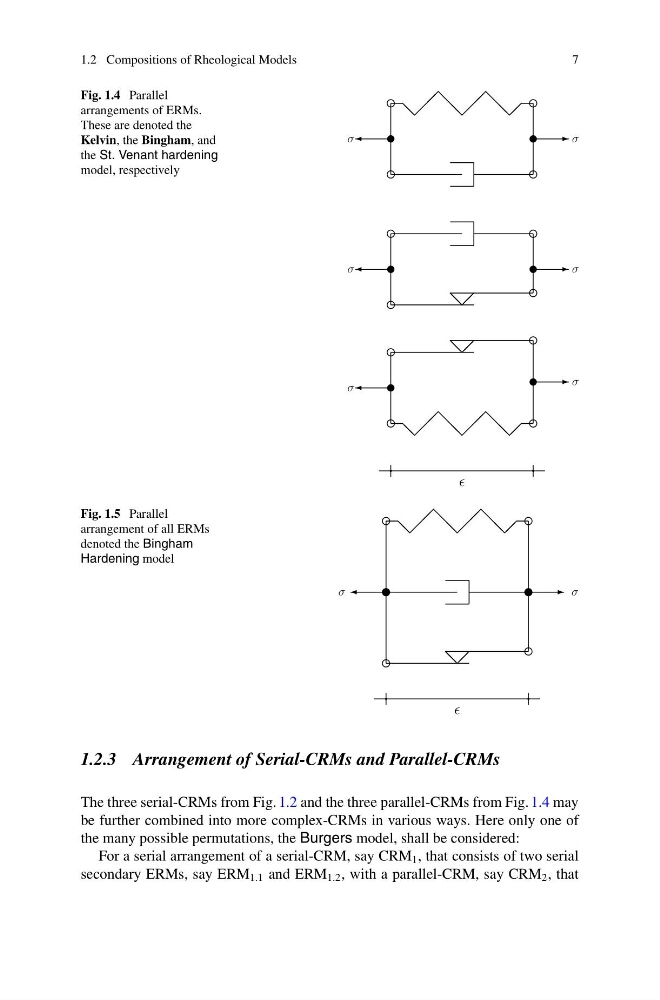

Fig. 1.4 Parallel
arrangements of ERMs.
These are denoted the
Kelvin, the Bingham, and
the St. Venant hardening
model, respectively
σ
σ
σ
σ
σ
σ
Fig. 1.5 Parallel
arrangement of all ERMs
denoted the Bingham
Hardening model
σ
σ
1.2.3 Arrangement of Serial-CRMs and Parallel-CRMs
The three serial-CRMs from Fig. 1.2 and the three parallel-CRMs from Fig. 1.4 may
be further combined into more complex-CRMs in various ways. Here only one of
the many possible permutations, the Burgers model, shall be considered:
For a serial arrangement of a serial-CRM, say CRM 1 , that consists of two serial
secondary ERMs, say ERM 1.1 and ERM 1.2 , with a parallel-CRM, say CRM 2 , that
