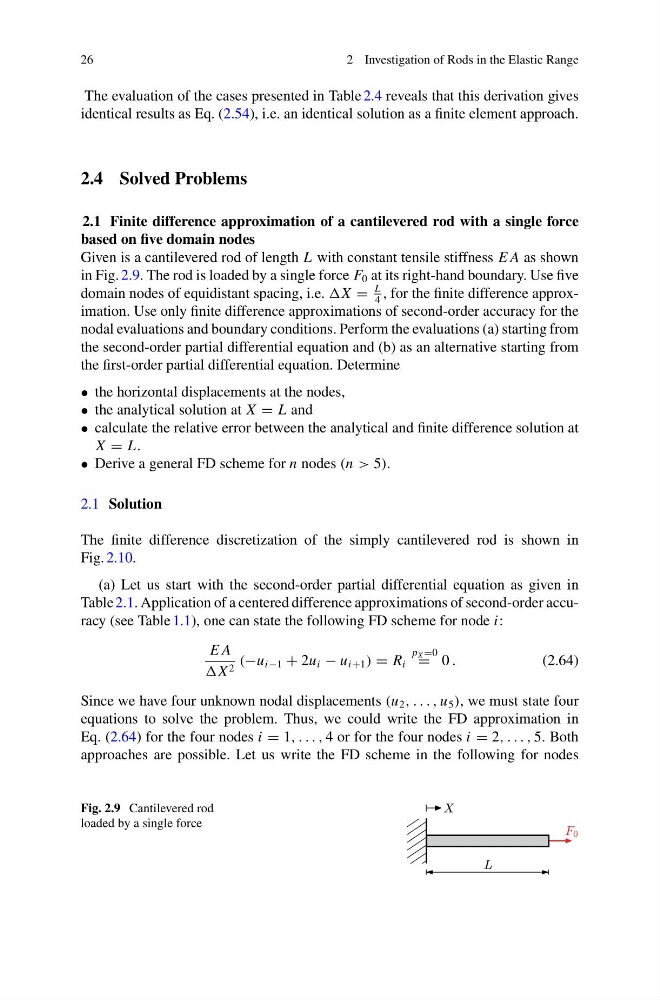

The evaluation of the cases presented in Table 2.4 reveals that this derivation gives
identical results as Eq. (2.54), i.e. an identical solution as a finite element approach.
2.4 Solved Problems
2.1 Finite difference approximation of a cantilevered rod with a single force
based on five domain nodes
Given is a cantilevered rod of length L with constant tensile stiffness E A as shown
in Fig. 2.9. The rod is loaded by a single force F 0 at its right-hand boundary. Use five
domain nodes of equidistant spacing, i.e. =
L
4
, for the finite difference approximation. Use only finite difference approximations of second-order accuracy for the
nodal evaluations and boundary conditions. Perform the evaluations (a) starting from
the second-order partial differential equation and (b) as an alternative starting from
the first-order partial differential equation. Determine
• the horizontal displacements at the nodes,
• the analytical solution at X = L and
• calculate the relative error between the analytical and finite difference solution at
X = L.
• Derive a general FD scheme for n nodes (n > 5).
2.1 Solution
The finite difference discretization of the simply cantilevered rod is shown in
Fig. 2.10.
(a) Let us start with the second-order partial differential equation as given in
Table 2.1. Application of a centered difference approximations of second-order accuracy (see Table 1.1), one can state the following FD scheme for node i:
E A
2 (−u i−1 + 2u i − u i+1 ) = R i
p X =0
= 0 .
(2.64)
Since we have four unknown nodal displacements (u 2 , . . . , u 5 ), we must state four
equations to solve the problem. Thus, we could write the FD approximation in
Eq. (2.64) for the four nodes i = 1, . . . , 4 or for the four nodes i = 2, . . . , 5. Both
approaches are possible. Let us write the FD scheme in the following for nodes
Fig. 2.9 Cantilevered rod
loaded by a single force
