Non-covalent Interactions in Selected Transition Metal Complexes
85

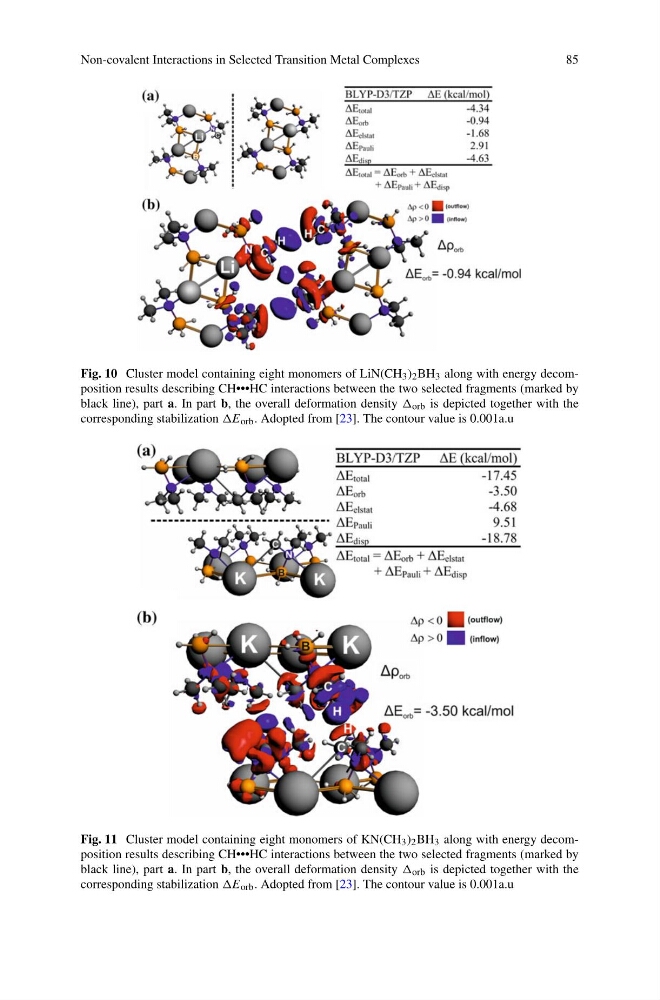

Fig. 10 Cluster model containing eight monomers of LiN(CH 3 ) 2 BH 3 along with energy decomposition results describing CH•••HC interactions between the two selected fragments (marked by
black line), part a. In part b, the overall deformation density orb is depicted together with the
corresponding stabilization E orb . Adopted from [23]. The contour value is 0.001a.u
Fig. 11 Cluster model containing eight monomers of KN(CH 3 ) 2 BH 3 along with energy decomposition results describing CH•••HC interactions between the two selected fragments (marked by
black line), part a. In part b, the overall deformation density orb is depicted together with the
corresponding stabilization E orb . Adopted from [23]. The contour value is 0.001a.u
85
Fig. 10 Cluster model containing eight monomers of LiN(CH 3 ) 2 BH 3 along with energy decomposition results describing CH•••HC interactions between the two selected fragments (marked by
black line), part a. In part b, the overall deformation density orb is depicted together with the
corresponding stabilization E orb . Adopted from [23]. The contour value is 0.001a.u
Fig. 11 Cluster model containing eight monomers of KN(CH 3 ) 2 BH 3 along with energy decomposition results describing CH•••HC interactions between the two selected fragments (marked by
black line), part a. In part b, the overall deformation density orb is depicted together with the
corresponding stabilization E orb . Adopted from [23]. The contour value is 0.001a.u
