Dongjiang Yang et al. synthesized g-C 3 N 4 /TiO 2 (B) nanofibers with selective
exposure of high-energy (001) plane and applied it to the degradation of
sulforhodamine B (SRB) dye. Figure 7.9 revealed that the diffraction spots of
electron diffraction pattern (EDP) of samples could be indexed as (110), (1–10),

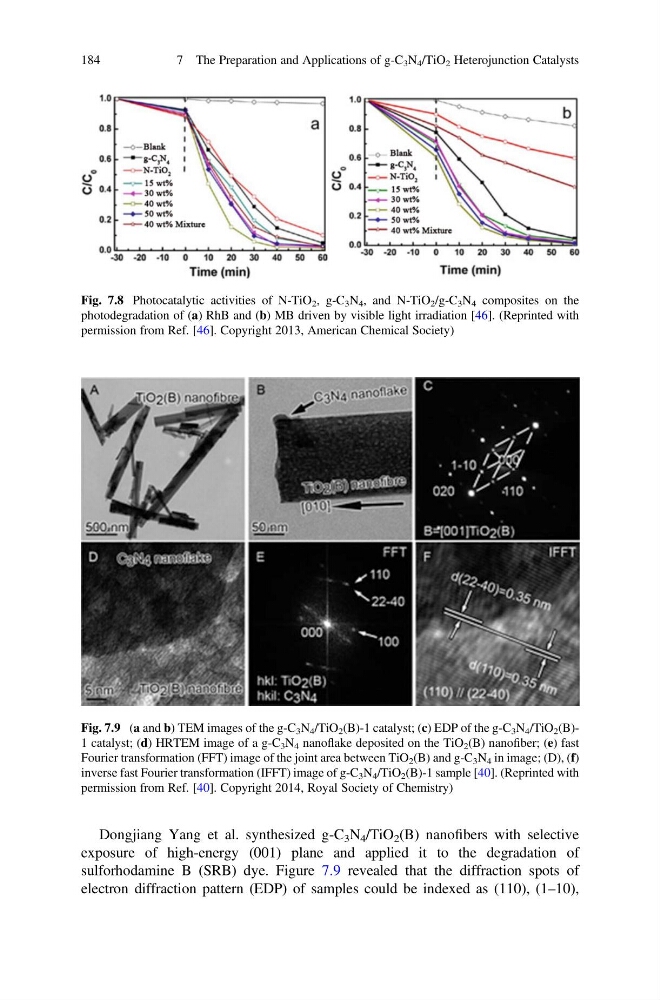

Fig. 7.8 Photocatalytic activities of N-TiO 2 , g-C 3 N 4 , and N-TiO 2 /g-C 3 N 4 composites on the
photodegradation of (a) RhB and (b) MB driven by visible light irradiation [46]. (Reprinted with
permission from Ref. [46]. Copyright 2013, American Chemical Society)
Fig. 7.9 (a and b) TEM images of the g-C 3 N 4 /TiO 2 (B)-1 catalyst; (c) EDP of the g-C 3 N 4 /TiO 2 (B)1 catalyst; (d) HRTEM image of a g-C 3 N 4 nanoflake deposited on the TiO 2 (B) nanofiber; (e) fast
Fourier transformation (FFT) image of the joint area between TiO 2 (B) and g-C 3 N 4 in image; (D), (f)
inverse fast Fourier transformation (IFFT) image of g-C 3 N 4 /TiO 2 (B)-1 sample [40]. (Reprinted with
permission from Ref. [40]. Copyright 2014, Royal Society of Chemistry)
