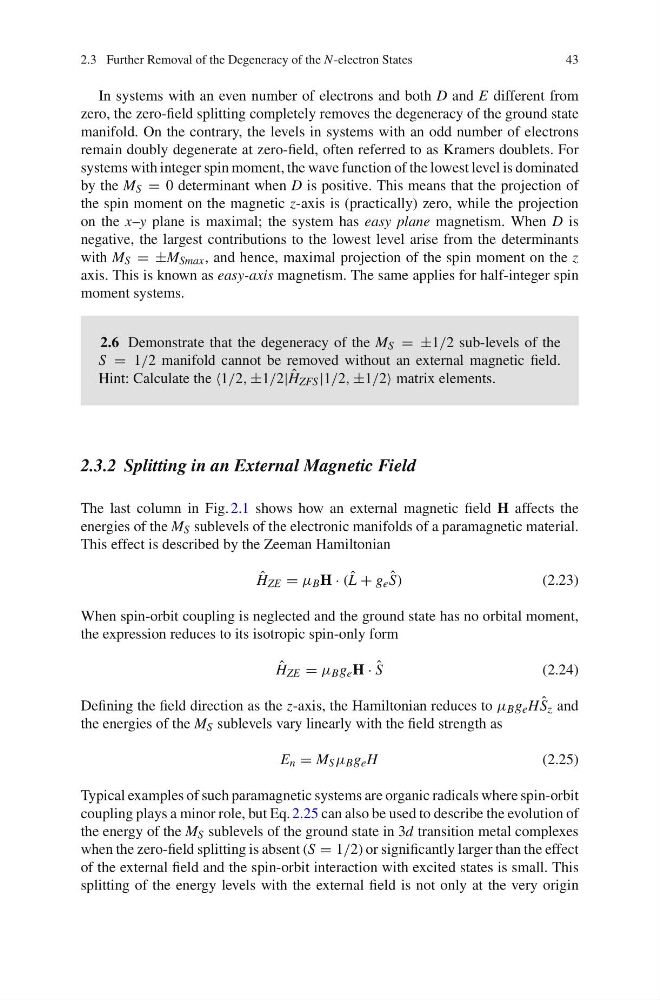

2.3 Further Removal of the Degeneracy of the N-electron States
43
In systems with an even number of electrons and both D and E different from
zero, the zero-field splitting completely removes the degeneracy of the ground state
manifold. On the contrary, the levels in systems with an odd number of electrons
remain doubly degenerate at zero-field, often referred to as Kramers doublets. For
systems with integer spin moment, the wave function of the lowest level is dominated
by the M S = 0 determinant when D is positive. This means that the projection of
the spin moment on the magnetic z-axis is (practically) zero, while the projection
on the x–y plane is maximal; the system has easy plane magnetism. When D is
negative, the largest contributions to the lowest level arise from the determinants
with M S =± M Smax , and hence, maximal projection of the spin moment on the z
axis. This is known as easy-axis magnetism. The same applies for half-integer spin
moment systems.
2.6 Demonstrate that the degeneracy of the M S =± 1/2 sub-levels of the
S = 1/2 manifold cannot be removed without an external magnetic field.
Hint: Calculate the 1/2, ±1/2| ˆ
H ZFS |1/2, ±1/2 matrix elements.
2.3.2 Splitting in an External Magnetic Field
The last column in Fig. 2.1 shows how an external magnetic field H affects the
energies of the M S sublevels of the electronic manifolds of a paramagnetic material.
This effect is described by the Zeeman Hamiltonian
ˆ
H ZE = μ B H · ( ˆ
L + g e ˆ
S)
(2.23)
When spin-orbit coupling is neglected and the ground state has no orbital moment,
the expression reduces to its isotropic spin-only form
ˆ
H ZE = μ B g e H · ˆ
S
(2.24)
Defining the field direction as the z-axis, the Hamiltonian reduces to μ B g e H ˆ
S z and
the energies of the M S sublevels vary linearly with the field strength as
E n = M S μ B g e H
(2.25)
Typical examples of such paramagnetic systems are organic radicals where spin-orbit
coupling plays a minor role, but Eq. 2.25 can also be used to describe the evolution of
the energy of the M S sublevels of the ground state in 3d transition metal complexes
when the zero-field splitting is absent (S = 1/2) or significantly larger than the effect
of the external field and the spin-orbit interaction with excited states is small. This
splitting of the energy levels with the external field is not only at the very origin
