19.6
19.1
19.2
(a)
(b)
(c)
(d)
19.3
19.4
(a)
(b)
(c)
(d)
19.5

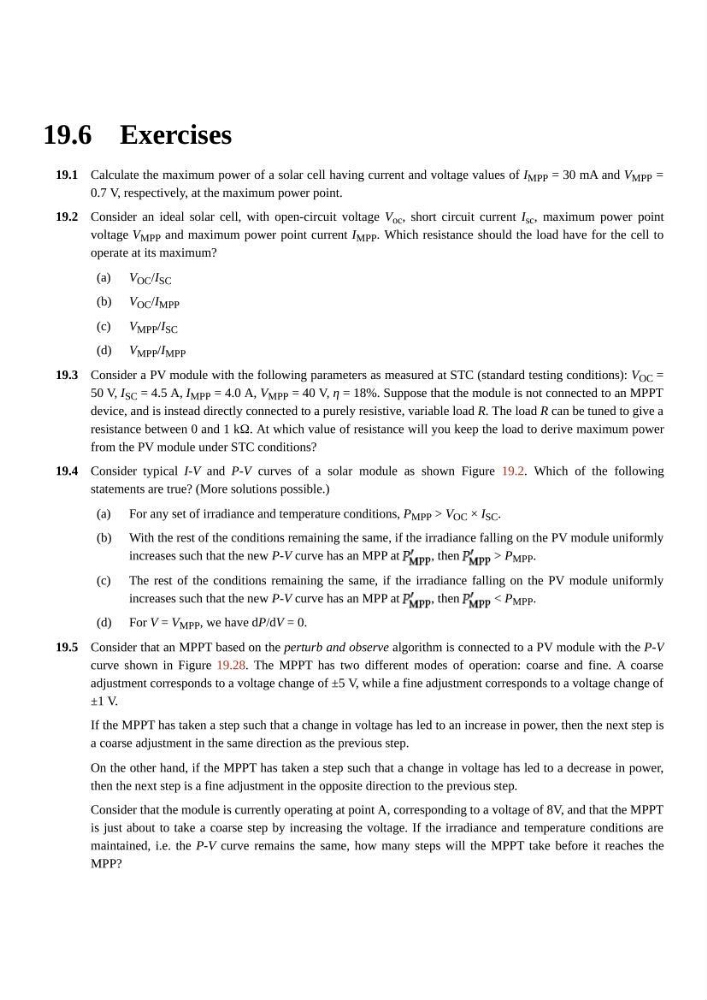

Exercises
Calculate the maximum power of a solar cell having current and voltage values of I MPP = 30 mA and V MPP =
0.7 V, respectively, at the maximum power point.
Consider an ideal solar cell, with open-circuit voltage V oc , short circuit current I sc , maximum power point
voltage V MPP and maximum power point current I MPP . Which resistance should the load have for the cell to
operate at its maximum?
V OC /I SC
V OC /I MPP
V MPP /I SC
V MPP /I MPP
Consider a PV module with the following parameters as measured at STC (standard testing conditions): V OC =
50 V, I SC = 4.5 A, I MPP = 4.0 A, V MPP = 40 V, η = 18%. Suppose that the module is not connected to an MPPT
device, and is instead directly connected to a purely resistive, variable load R. The load R can be tuned to give a
resistance between 0 and 1 kΩ. At which value of resistance will you keep the load to derive maximum power
from the PV module under STC conditions?
Consider typical I-V and P-V curves of a solar module as shown Figure 19.2. Which of the following
statements are true? (More solutions possible.)
For any set of irradiance and temperature conditions, P MPP > V OC × I SC .
With the rest of the conditions remaining the same, if the irradiance falling on the PV module uniformly
increases such that the new P-V curve has an MPP at
, then
> P MPP .
The rest of the conditions remaining the same, if the irradiance falling on the PV module uniformly
increases such that the new P-V curve has an MPP at
, then
< P MPP .
For V = V MPP , we have dP/dV = 0.
Consider that an MPPT based on the perturb and observe algorithm is connected to a PV module with the P-V
curve shown in Figure 19.28. The MPPT has two different modes of operation: coarse and fine. A coarse
adjustment corresponds to a voltage change of ±5 V, while a fine adjustment corresponds to a voltage change of
±1 V.
If the MPPT has taken a step such that a change in voltage has led to an increase in power, then the next step is
a coarse adjustment in the same direction as the previous step.
On the other hand, if the MPPT has taken a step such that a change in voltage has led to a decrease in power,
then the next step is a fine adjustment in the opposite direction to the previous step.
Consider that the module is currently operating at point A, corresponding to a voltage of 8V, and that the MPPT
is just about to take a coarse step by increasing the voltage. If the irradiance and temperature conditions are
maintained, i.e. the P-V curve remains the same, how many steps will the MPPT take before it reaches the
MPP?
