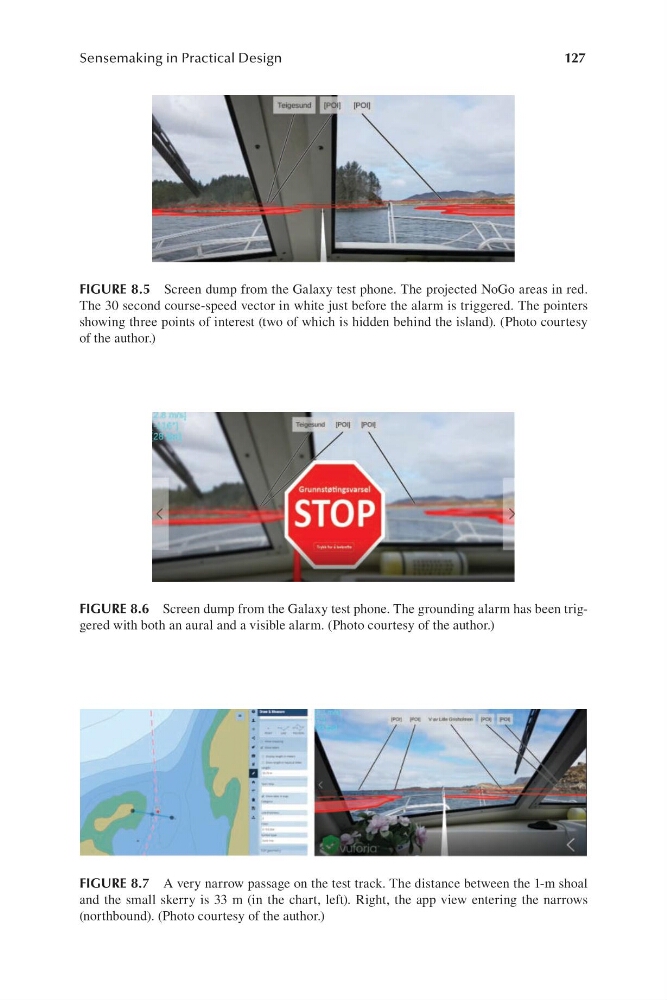

Sensemaking in Practical Design
FIGURE 8.5 Screen dump from the Galaxy test phone. The projected NoGo areas in red.
The 30 second course-speed vector in white just before the alarm is triggered. The pointers
showing three points of interest ( two of which is hidden behind the island). ( Photo courtesy
of the author.)
FIGURE 8.6 Screen dump from the Galaxy test phone. The grounding alarm has been triggered with both an aural and a visible alarm. ( Photo courtesy of the author.)
FIGURE 8.7 A very narrow passage on the test track. The distance between the 1 -m shoal
and the small skerry is 33 m ( in the chart, left). Right, the app view entering the narrows
( northbound). ( Photo courtesy of the author.)
