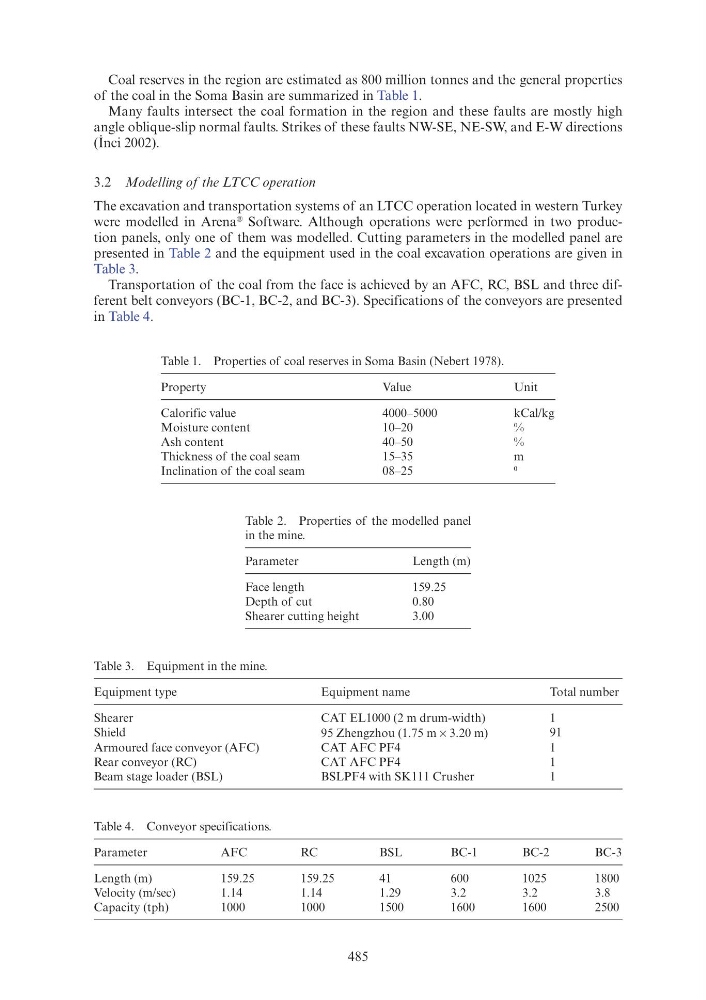

485
Coal reserves in the region are estimated as 800 million tonnes and the general properties
of the coal in the Soma Basin are summarized in Table 1.
Many faults intersect the coal formation in the region and these faults are mostly high
angle oblique-slip normal faults. Strikes of these faults NW-SE, NE-SW, and E-W directions
(İnci 2002).
3.2 Modelling of the LTCC operation
The excavation and transportation systems of an LTCC operation located in western Turkey
were modelled in Arena
® Software. Although operations were performed in two production panels, only one of them was modelled. Cutting parameters in the modelled panel are
presented in Table 2 and the equipment used in the coal excavation operations are given in
Table 3.
Transportation of the coal from the face is achieved by an AFC, RC, BSL and three different belt conveyors (BC-1, BC-2, and BC-3). Specifications of the conveyors are presented
in Table 4.
Table 1. Properties of coal reserves in Soma Basin (Nebert 1978).
Property
Value
Unit
Calorific value
4000–5000
kCal/kg
Moisture content
10–20
%
Ash content
40–50
%
Thickness of the coal seam
15–35
m
Inclination of the coal seam
08–25
0
Table 2. Properties of the modelled panel
in the mine.
Parameter
Length (m)
Face length
159.25
Depth of cut
0.80
Shearer cutting height
3.00
Table 3. Equipment in the mine.
Equipment type
Equipment name
Total number
Shearer
CAT EL1000 (2 m drum-width)
1
Shield
95 Zhengzhou (1.75 m × 3.20 m)
91
Armoured face conveyor (AFC)
CAT AFC PF4
1
Rear conveyor (RC)
CAT AFC PF4
1
Beam stage loader (BSL)
BSLPF4 with SK111 Crusher
1
Table 4. Conveyor specifications.
Parameter
AFC
RC
BSL
BC-1
BC-2
BC-3
Length (m)
159.25
159.25
41
600
1025
1800
Velocity (m/sec)
1.14
1.14
1.29
3.2
3.2
3.8
Capacity (tph)
1000
1000
1500
1600
1600
2500
