Coolers and Condensers
• E 301 overhead condenser
Unit including fans and structure = 1,627,540$.
• E 302 gas oil cooler
Unit including fans = 243,196$ (unit located in pipeway, no stand-alone structure).
Total cooler and condenser account = 1,870,740$.
Heater/Reactor
• H 301 thermal cracker heater
This unit will be field erected. Included in this account is the cost of fabricated
material delivered to site.
Unit material cost = 8,314,400$.
Total Equipment Material Account Summary
$
Pumps and drivers
3,533,884
Vessels
4,157,200
Cond and coolers
1,870,740
Heater/reactor
8,314,400
Total
17,876,224
Capital Cost Estimates
Capital cost estimates are usually prepared by specialist engineers who are fully
conversant with their company’s estimating procedures and their company’s

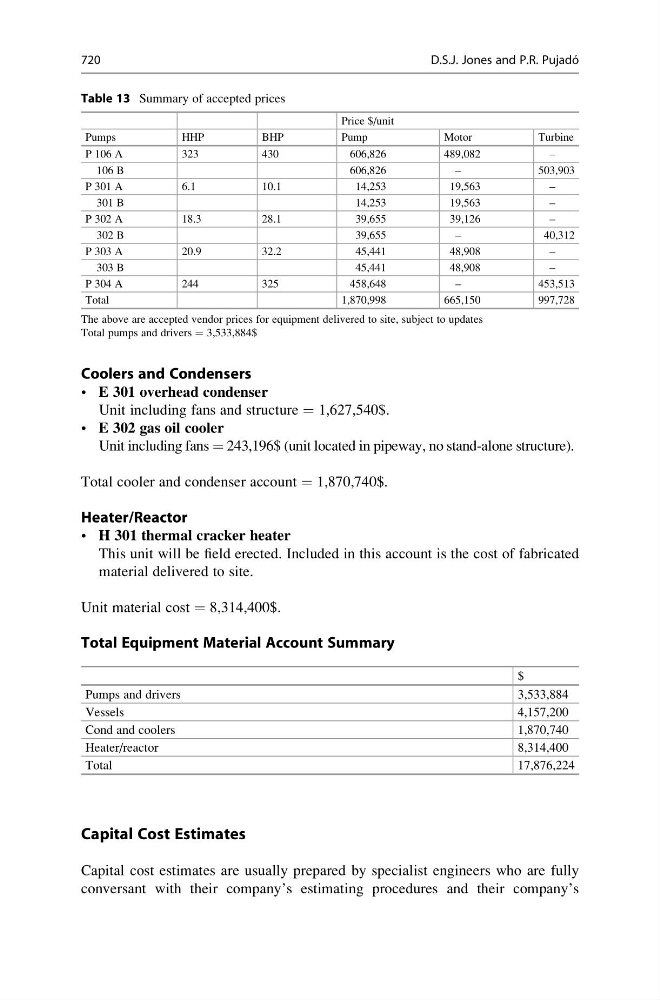

Table 13 Summary of accepted prices
Price $/unit
Pumps
HHP
BHP
Pump
Motor
Turbine
P 106 A
323
430
606,826
489,082
–
106 B
606,826
–
503,903
P 301 A
6.1
10.1
14,253
19,563
–
301 B
14,253
19,563
–
P 302 A
18.3
28.1
39,655
39,126
–
302 B
39,655
–
40,312
P 303 A
20.9
32.2
45,441
48,908
–
303 B
45,441
48,908
–
P 304 A
244
325
458,648
–
453,513
Total
1,870,998
665,150
997,728
The above are accepted vendor prices for equipment delivered to site, subject to updates
Total pumps and drivers = 3,533,884$
720
