Fig. 16.24 Recognition of shale compaction and overpressure in shale sequences using the formation density and sonic logs.
(Adapted from Mondol et al. 2008)

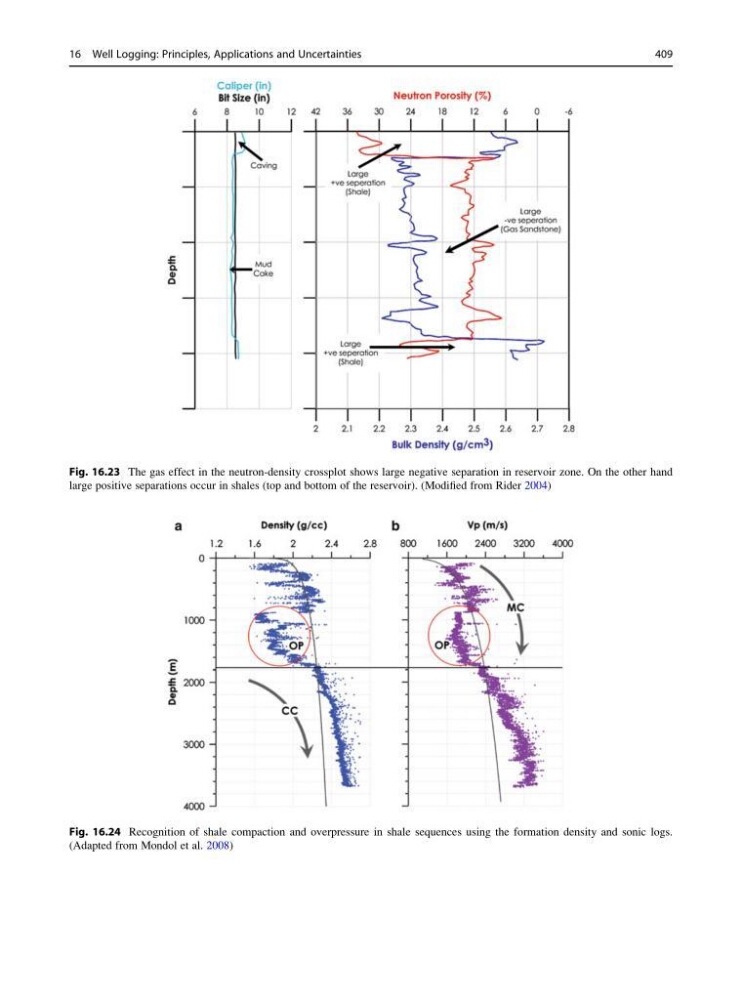

Fig. 16.23 The gas effect in the neutron-density crossplot shows large negative separation in reservoir zone. On the other hand
large positive separations occur in shales (top and bottom of the reservoir). (Modified from Rider 2004)
