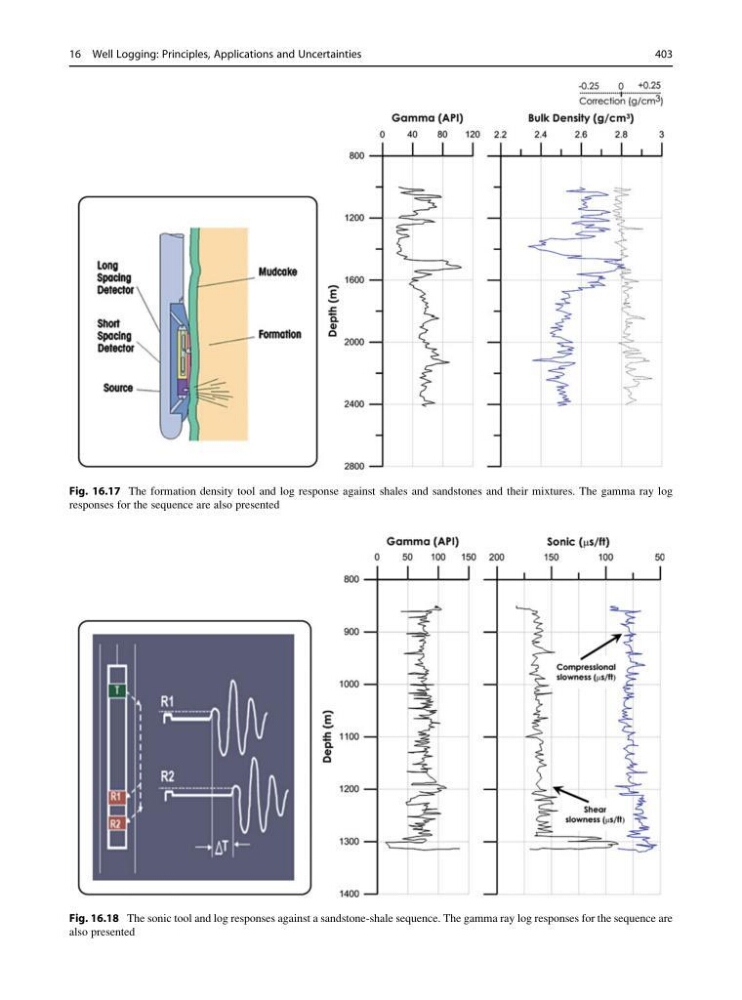

Fig. 16.17 The formation density tool and log response against shales and sandstones and their mixtures. The gamma ray log
responses for the sequence are also presented
Fig. 16.18 The sonic tool and log responses against a sandstone-shale sequence. The gamma ray log responses for the sequence are
also presented
