The enhanced protection elicited by the nMOMP/A8-35-formulated vaccine as compared to the
nMOMP/Z3-14 one therefore results from a better preservation of the native structure of nMOMP
and/or from a more efficient presentation of the immunogen to the immune system, not from an
unspecific adjuvant effect of A8-35.

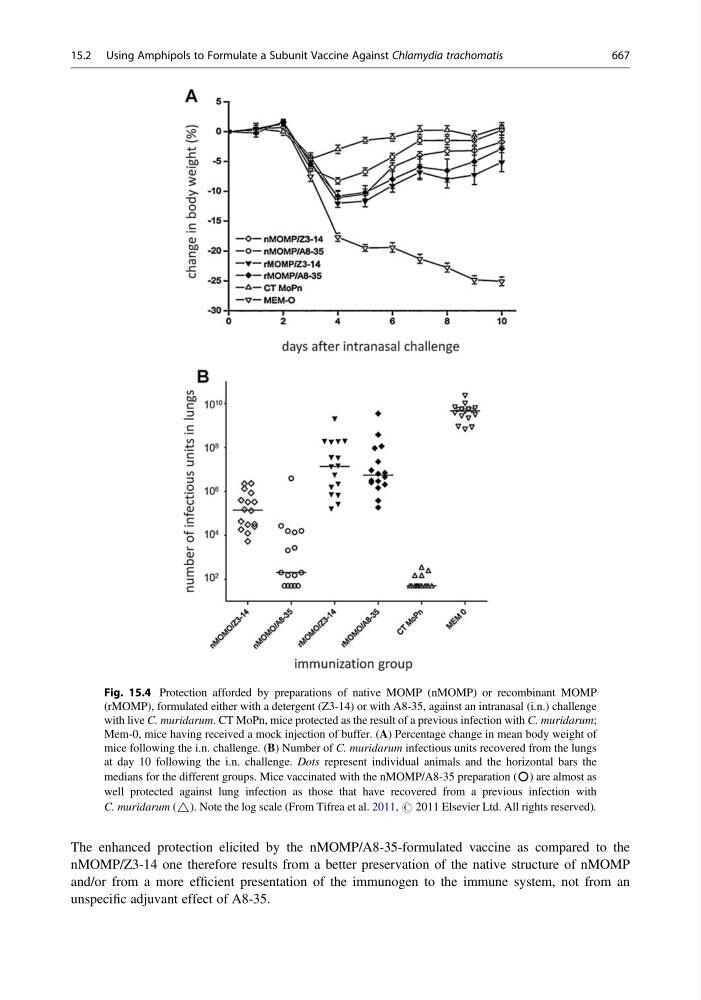

Fig. 15.4 Protection afforded by preparations of native MOMP (nMOMP) or recombinant MOMP
(rMOMP), formulated either with a detergent (Z3-14) or with A8-35, against an intranasal (i.n.) challenge
with live C. muridarum. CT MoPn, mice protected as the result of a previous infection with C. muridarum;
Mem-0, mice having received a mock injection of buffer. (A) Percentage change in mean body weight of
mice following the i.n. challenge. (B) Number of C. muridarum infectious units recovered from the lungs
at day 10 following the i.n. challenge. Dots represent individual animals and the horizontal bars the
medians for the different groups. Mice vaccinated with the nMOMP/A8-35 preparation () are almost as
well protected against lung infection as those that have recovered from a previous infection with
C. muridarum ( ). Note the log scale (From Tifrea et al. 2011, # 2011 Elsevier Ltd. All rights reserved).
15.2 Using Amphipols to Formulate a Subunit Vaccine Against Chlamydia trachomatis
667
