successfully carried out without significant decomposition of the living polymer end
[162]. The polymer chain end is living within such residence times. Moreover, the
subsequent reaction of the living polymer end with a different alkyl methacrylate leads
to the formation of a block copolymer having narrow molecular-weight distribution
(Table 4).
Fig. 18 Size-exclusion chromatography traces of polymers obtained in the integrated flow
microreactor system. Effect of residence time on the molecular weight distribution for (a) methyl
methacrylate–methyl methacrylate, and (b) butyl methacrylate–butyl methacrylate

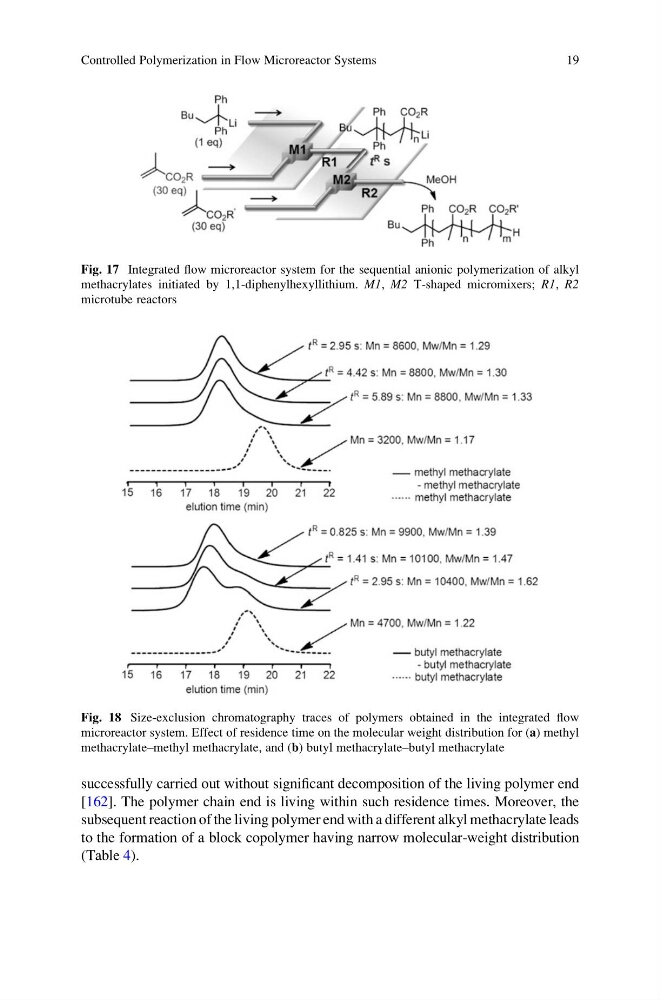

Fig. 17 Integrated flow microreactor system for the sequential anionic polymerization of alkyl
methacrylates initiated by 1,1-diphenylhexyllithium. M1, M2 T-shaped micromixers; R1, R2
microtube reactors
Controlled Polymerization in Flow Microreactor Systems
19
[162]. The polymer chain end is living within such residence times. Moreover, the
subsequent reaction of the living polymer end with a different alkyl methacrylate leads
to the formation of a block copolymer having narrow molecular-weight distribution
(Table 4).
Fig. 18 Size-exclusion chromatography traces of polymers obtained in the integrated flow
microreactor system. Effect of residence time on the molecular weight distribution for (a) methyl
methacrylate–methyl methacrylate, and (b) butyl methacrylate–butyl methacrylate
Fig. 17 Integrated flow microreactor system for the sequential anionic polymerization of alkyl
methacrylates initiated by 1,1-diphenylhexyllithium. M1, M2 T-shaped micromixers; R1, R2
microtube reactors
Controlled Polymerization in Flow Microreactor Systems
19
