• Full respiration
• Partial respiration
• No respiration
• Overflow metabolism
• Substrate limitation
• Starvation
3m
7.7m

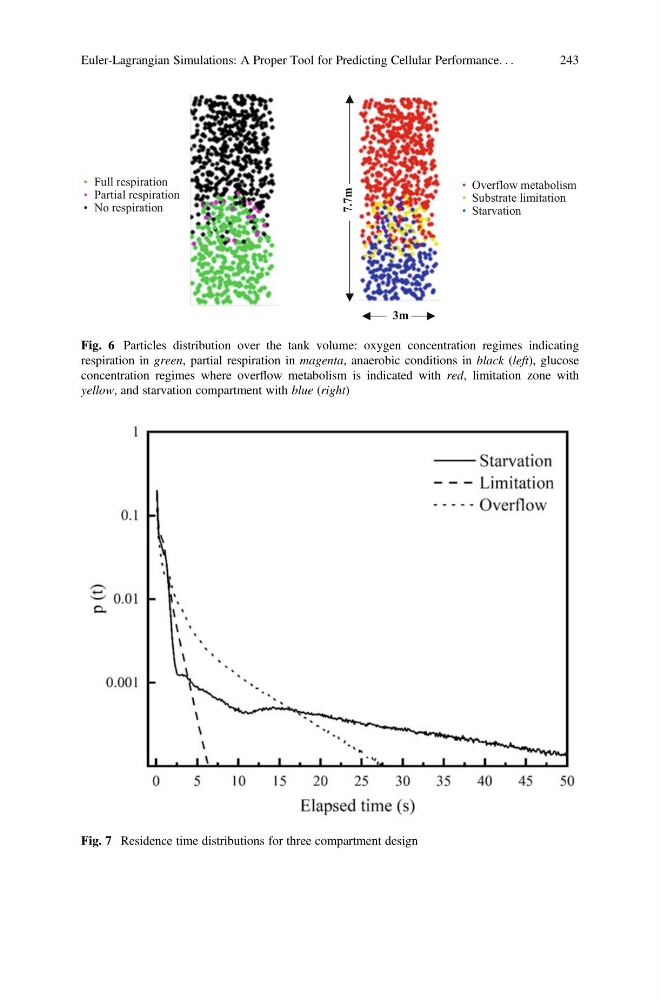

Fig. 6 Particles distribution over the tank volume: oxygen concentration regimes indicating
respiration in green, partial respiration in magenta, anaerobic conditions in black (left), glucose
concentration regimes where overflow metabolism is indicated with red, limitation zone with
yellow, and starvation compartment with blue (right)
Fig. 7 Residence time distributions for three compartment design
