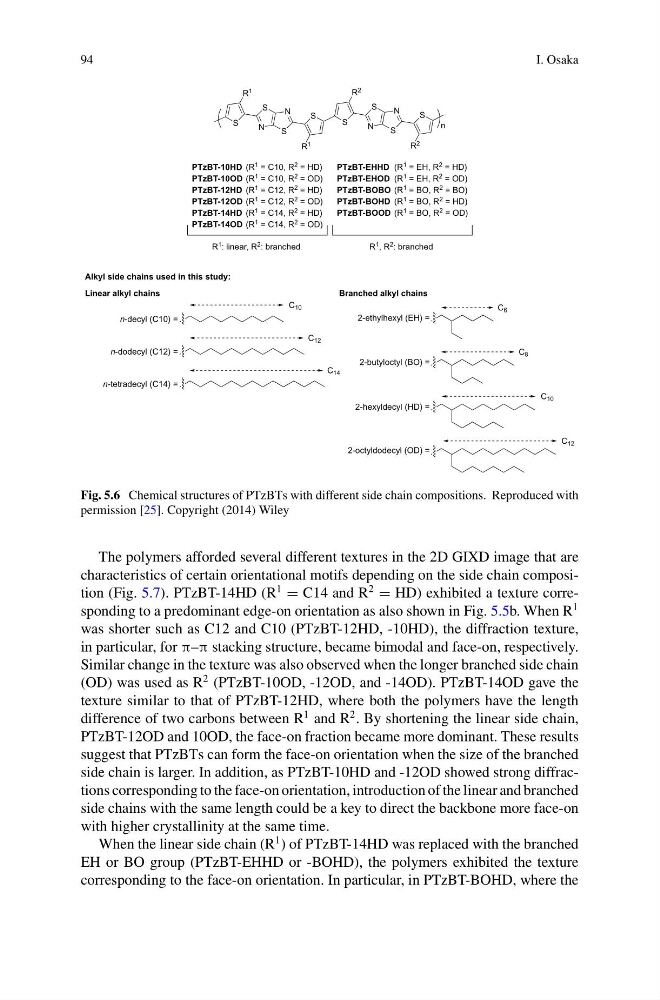

Fig. 5.6 Chemical structures of PTzBTs with different side chain compositions. Reproduced with
permission [25]. Copyright (2014) Wiley
The polymers afforded several different textures in the 2D GIXD image that are
characteristics of certain orientational motifs depending on the side chain composition (Fig. 5.7). PTzBT-14HD (R
1
= C14 and R
2
= HD) exhibited a texture corresponding to a predominant edge-on orientation as also shown in Fig. 5.5b. When R
1
was shorter such as C12 and C10 (PTzBT-12HD, -10HD), the diffraction texture,
in particular, for π–π stacking structure, became bimodal and face-on, respectively.
Similar change in the texture was also observed when the longer branched side chain
(OD) was used as R
2 (PTzBT-10OD, -12OD, and -14OD). PTzBT-14OD gave the
texture similar to that of PTzBT-12HD, where both the polymers have the length
difference of two carbons between R
1 and R
2 . By shortening the linear side chain,
PTzBT-12OD and 10OD, the face-on fraction became more dominant. These results
suggest that PTzBTs can form the face-on orientation when the size of the branched
side chain is larger. In addition, as PTzBT-10HD and -12OD showed strong diffractions corresponding to the face-on orientation, introduction of the linear and branched
side chains with the same length could be a key to direct the backbone more face-on
with higher crystallinity at the same time.
When the linear side chain (R
1 ) of PTzBT-14HD was replaced with the branched
EH or BO group (PTzBT-EHHD or -BOHD), the polymers exhibited the texture
