(a) Y
(b) YO
(c) RO
(d) R

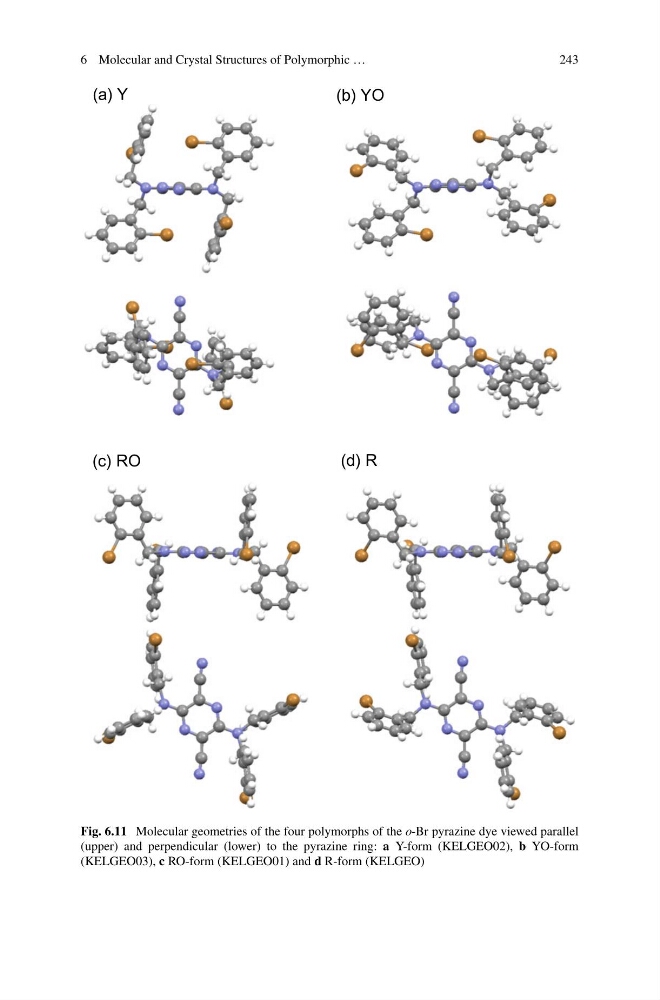

Fig. 6.11 Molecular geometries of the four polymorphs of the o-Br pyrazine dye viewed parallel
(upper) and perpendicular (lower) to the pyrazine ring: a Y-form (KELGEO02), b YO-form
(KELGEO03), c RO-form (KELGEO01) and d R-form (KELGEO)
