98
S. Shimizu

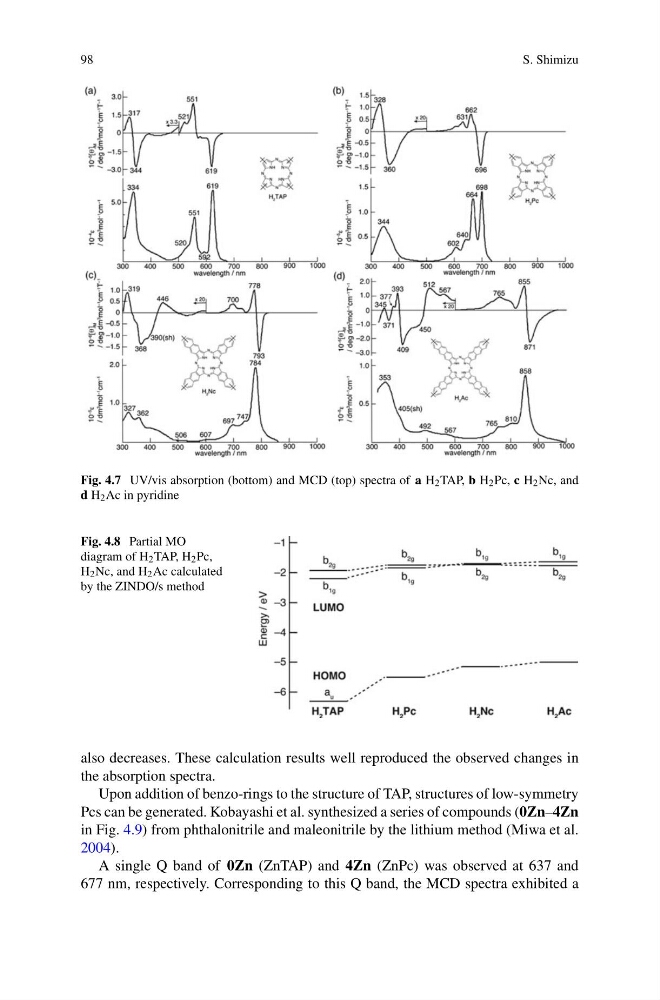

Fig. 4.7 UV/vis absorption (bottom) and MCD (top) spectra of a H 2 TAP, b H 2 Pc, c H 2 Nc, and
d H 2 Ac in pyridine
Fig. 4.8 Partial MO
diagram of H 2 TAP, H 2 Pc,
H 2 Nc, and H 2 Ac calculated
by the ZINDO/s method
also decreases. These calculation results well reproduced the observed changes in
the absorption spectra.
Upon addition of benzo-rings to the structure of TAP, structures of low-symmetry
Pcs can be generated. Kobayashi et al. synthesized a series of compounds (0Zn–4Zn
in Fig. 4.9) from phthalonitrile and maleonitrile by the lithium method (Miwa et al.
2004).
A single Q band of 0Zn (ZnTAP) and 4Zn (ZnPc) was observed at 637 and
677 nm, respectively. Corresponding to this Q band, the MCD spectra exhibited a
