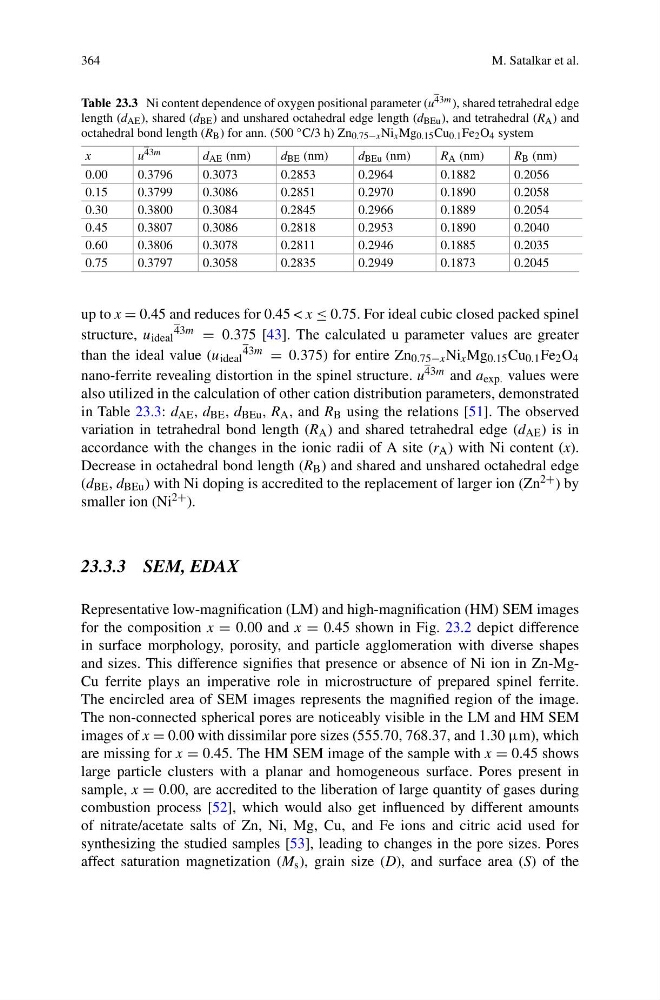

364
M. Satalkar et al.
Table 23.3 Ni content dependence of oxygen positional parameter (u 43m ), shared tetrahedral edge
length (d AE ), shared (d BE ) and unshared octahedral edge length (d BEu ), and tetrahedral (R A ) and
octahedral bond length (R B ) for ann. (500 ◦ C/3 h) Zn 0.75−x Ni x Mg 0.15 Cu 0.1 Fe 2 O 4 system
x
u 43m
d AE (nm)
d BE (nm)
d BEu (nm)
R A (nm)
R B (nm)
0.00
0.3796
0.3073
0.2853
0.2964
0.1882
0.2056
0.15
0.3799
0.3086
0.2851
0.2970
0.1890
0.2058
0.30
0.3800
0.3084
0.2845
0.2966
0.1889
0.2054
0.45
0.3807
0.3086
0.2818
0.2953
0.1890
0.2040
0.60
0.3806
0.3078
0.2811
0.2946
0.1885
0.2035
0.75
0.3797
0.3058
0.2835
0.2949
0.1873
0.2045
up to x = 0.45 and reduces for 0.45 < x ≤ 0.75. For ideal cubic closed packed spinel
structure, u ideal
43m = 0.375 [43]. The calculated u parameter values are greater
than the ideal value (u ideal
43m = 0.375) for entire Zn 0.75−x Ni x Mg 0.15 Cu 0.1 Fe 2 O 4
nano-ferrite revealing distortion in the spinel structure. u 43m and a exp. values were
also utilized in the calculation of other cation distribution parameters, demonstrated
in Table 23.3: d AE , d BE , d BEu , R A , and R B using the relations [51]. The observed
variation in tetrahedral bond length (R A ) and shared tetrahedral edge (d AE ) is in
accordance with the changes in the ionic radii of A site (r A ) with Ni content (x).
Decrease in octahedral bond length (R B ) and shared and unshared octahedral edge
(d BE , d BEu ) with Ni doping is accredited to the replacement of larger ion (Zn 2+ ) by
smaller ion (Ni 2+ ).
