169
Nanorobotic Manipulation for a Single Biological Cell
9.3 Principles of Stiffness Measurements for a Single Cell
9.3.1 Stiffness Measurement of a Single Cell Based
on Nanoindentation Technique

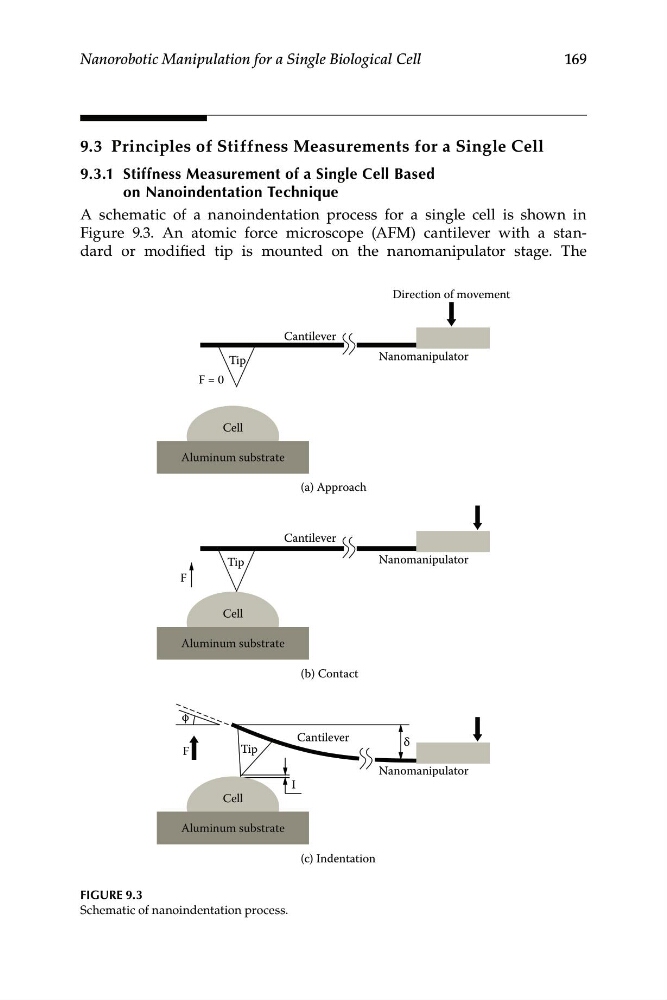

A schematic of a nanoindentation process for a single cell is shown in
Figure  9.3. An atomic force microscope (AFM) cantilever with a standard or modified tip is mounted on the nanomanipulator stage. The
FIGURE 9.3
Schematic of nanoindentation process.
