6.5 Patterning of PNHSMA and Coupling of (Bio)Molecules to Patterned Films
117

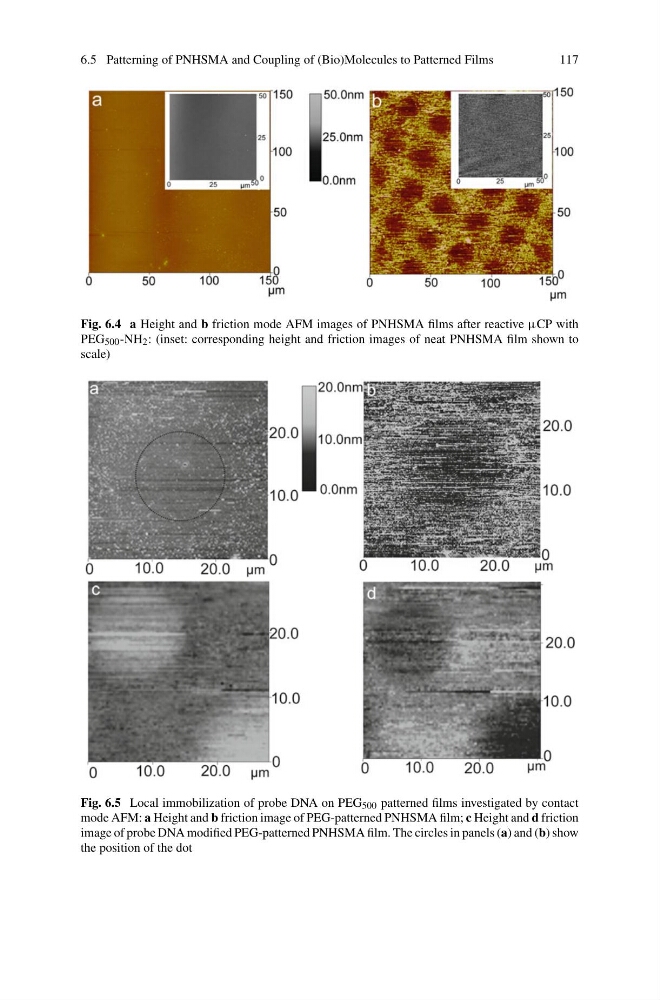

Fig. 6.4 a Height and b friction mode AFM images of PNHSMA films after reactive μCP with
PEG 500 -NH 2 : (inset: corresponding height and friction images of neat PNHSMA film shown to
scale)
Fig. 6.5 Local immobilization of probe DNA on PEG 500 patterned films investigated by contact
mode AFM: a Height and b friction image of PEG-patterned PNHSMA film; c Height and d friction
image of probe DNA modified PEG-patterned PNHSMA film. The circles in panels (a) and (b) show
the position of the dot
117
Fig. 6.4 a Height and b friction mode AFM images of PNHSMA films after reactive μCP with
PEG 500 -NH 2 : (inset: corresponding height and friction images of neat PNHSMA film shown to
scale)
Fig. 6.5 Local immobilization of probe DNA on PEG 500 patterned films investigated by contact
mode AFM: a Height and b friction image of PEG-patterned PNHSMA film; c Height and d friction
image of probe DNA modified PEG-patterned PNHSMA film. The circles in panels (a) and (b) show
the position of the dot
