Influence of Terahertz Frequency on the Elastic Constants …
89

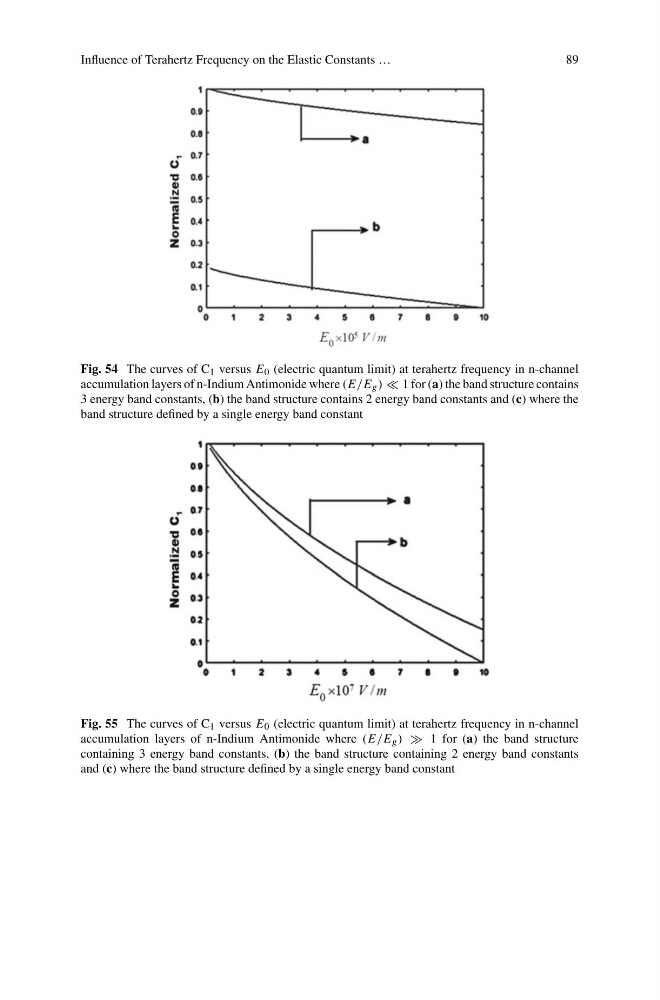

Fig. 54 The curves of C 1 versus E 0 (electric quantum limit) at terahertz frequency in n-channel
accumulation layers of n-Indium Antimonide where (E/E g ) 1 for (a) the band structure contains
3 energy band constants, (b) the band structure contains 2 energy band constants and (c) where the
band structure defined by a single energy band constant
Fig. 55 The curves of C 1 versus E 0 (electric quantum limit) at terahertz frequency in n-channel
accumulation layers of n-Indium Antimonide where (E/E g ) 1 for (a) the band structure
containing 3 energy band constants, (b) the band structure containing 2 energy band constants
and (c) where the band structure defined by a single energy band constant
89
Fig. 54 The curves of C 1 versus E 0 (electric quantum limit) at terahertz frequency in n-channel
accumulation layers of n-Indium Antimonide where (E/E g ) 1 for (a) the band structure contains
3 energy band constants, (b) the band structure contains 2 energy band constants and (c) where the
band structure defined by a single energy band constant
Fig. 55 The curves of C 1 versus E 0 (electric quantum limit) at terahertz frequency in n-channel
accumulation layers of n-Indium Antimonide where (E/E g ) 1 for (a) the band structure
containing 3 energy band constants, (b) the band structure containing 2 energy band constants
and (c) where the band structure defined by a single energy band constant
