C hapter 4 Material Classes, structure, and properties
108
that plasticity has occurred, and the resistance to it—a measure of
strength—is the load F divided by the area A of the indent projected
onto a plane perpendicular to the load
H
F
A
=
(4.12)
The indented region is surrounded by material that has not
deformed, and this constrains it so that H is larger than the yield
strength σ y ; in practice it is about 3σ y .
Strength, as we have seen, is measured in units of MPa, and since
H is a strength it would be logical and proper to measure it in MPa,
too. But things are not always logical and proper, and hardness
scales are among those that are not. A commonly used scale, that of
Vickers, symbol H ν , uses units of kg/mm
2
, with the result that
H
y
ν
σ
≈ 3
(4.13)
Figure 4.35 shows conversions to other scales.
The hardness test has the advantage of being nondestructive, so
strength can be measured without destroying the component, and
it requires only a tiny volume of material. But the information it
provides is less accurate and less complete than the tensile test, so it
is not used to provide critical design data.

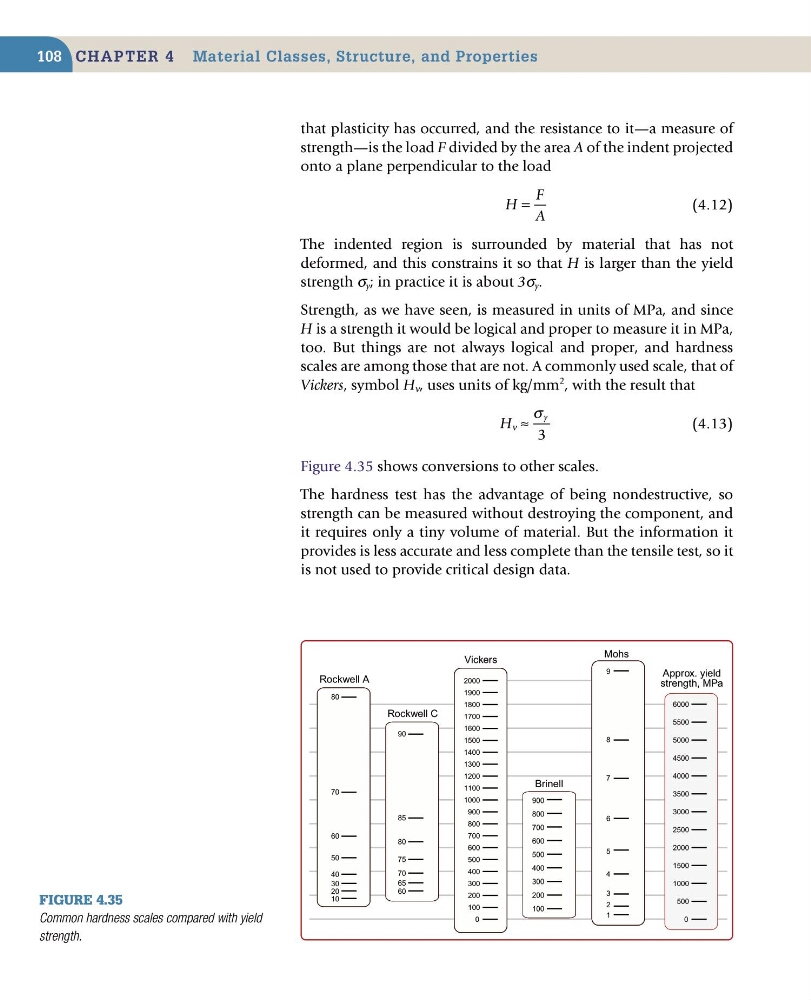

Figure 4.35
Common hardness scales compared with yield
strength.
Vickers
Brinell
Mohs
Rockwell A
Rockwell C
Approx. yield
strength, MPa
