486
N. Takatsu and H. Farzaneh

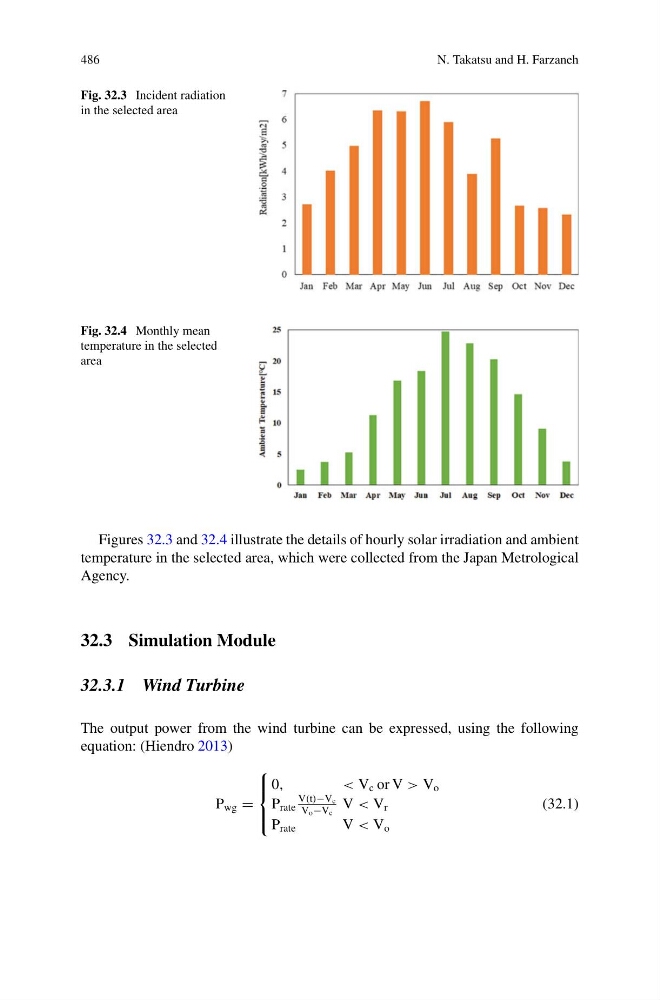

Fig. 32.3 Incident radiation
in the selected area
Fig. 32.4 Monthly mean
temperature in the selected
area
Figures 32.3 and 32.4 illustrate the details of hourly solar irradiation and ambient
temperature in the selected area, which were collected from the Japan Metrological
Agency.
32.3 Simulation Module
32.3.1 Wind Turbine
The output power from the wind turbine can be expressed, using the following
equation: (Hiendro 2013)
P wg =
⎧
⎪ ⎨
⎪ ⎩
0,
V o
P rate
V(t)−V c
V o −V c
V < V r
P rate
V < V o
(32.1)
