13.2. NANOELECTROMEGHANICAL SYSTEMS (NEMSs)
339

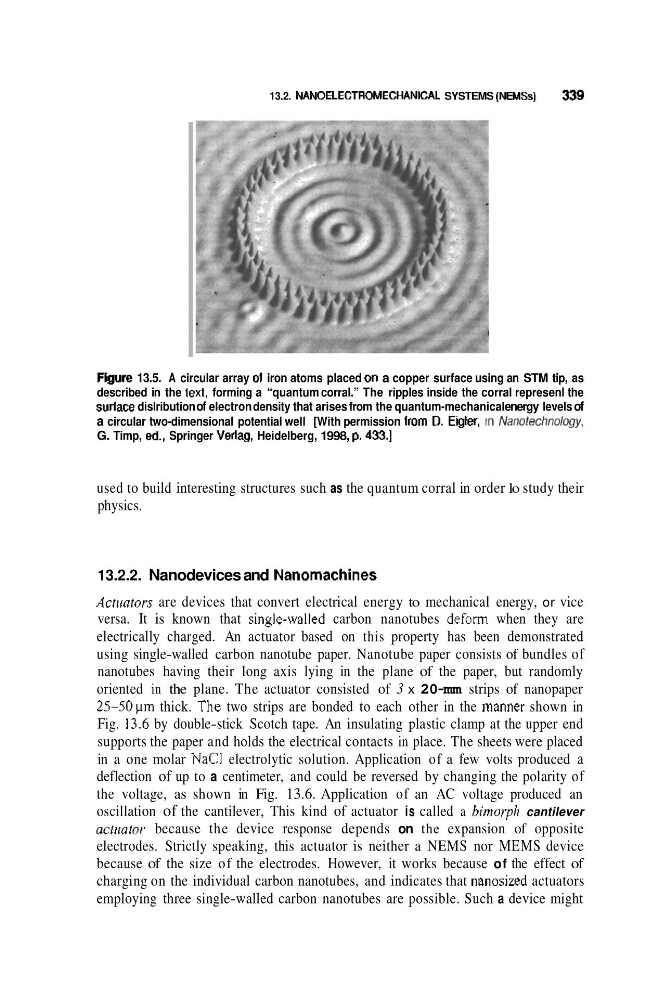

Flgure 13.5. A circular array of iron atoms placed on a copper surface using an STM tip, as
described in the lext, forming a “quantum corral.” The ripples inside the corral represenl the
surlace dislribution of electron density that arises from the quantum-mechanical energy levels of
a circular two-dimensional potential well [With permission lrom D. Eigler, in #anolechnolugy,
G. Timp, ed., Springer Verlag, Heidelberg, 1998, p. 433.1
used to build interesting structures such as the quantum corral in order lo study their
physics.
13.2.2. Nanodevices and Nanomachines
Actiiators are devices that convert electrical energy to mechanical energy, or vice
versa. It is known that singlc-walled carbon nanotubes deform when they are
electrically charged. An actuator based on this property has been demonstrated
using single-walled carbon nanotube paper. Nanotube paper consists of bundles of
nanotubes having their long axis lying in the plane of the paper, but randomly
oriented in the plane. The actuator consisted of 3 x 20-mm strips of nanopaper
25-50pm thick. The two strips are bonded to each other in the manner shown in
Fig. 13.6 by double-stick Scotch tape. An insulating plastic clamp at the upper end
supports the paper and holds the electrical contacts in place. The sheets were placed
in a one molar NaCl electrolytic solution. Application of a few volts produced a
deflection of up to a centimeter, and could be reversed by changing the polarity of
the voltage, as shown in Fig. 13.6. Application of an AC voltage produced an
oscillation of the cantilever, This kind of actuator is called a himoiph cantilever
acliiator because the device response depends on the expansion of opposite
electrodes. Strictly speaking, this actuator is neither a NEMS nor MEMS device
because of the size of the electrodes. However, it works because of the effect of
charging on the individual carbon nanotubes, and indicates that nanosized actuators
employing three single-walled carbon nanotubes are possible. Such a device might
339
