132
5 Metallic Technetium, Corrosion, Technetium Alloys …

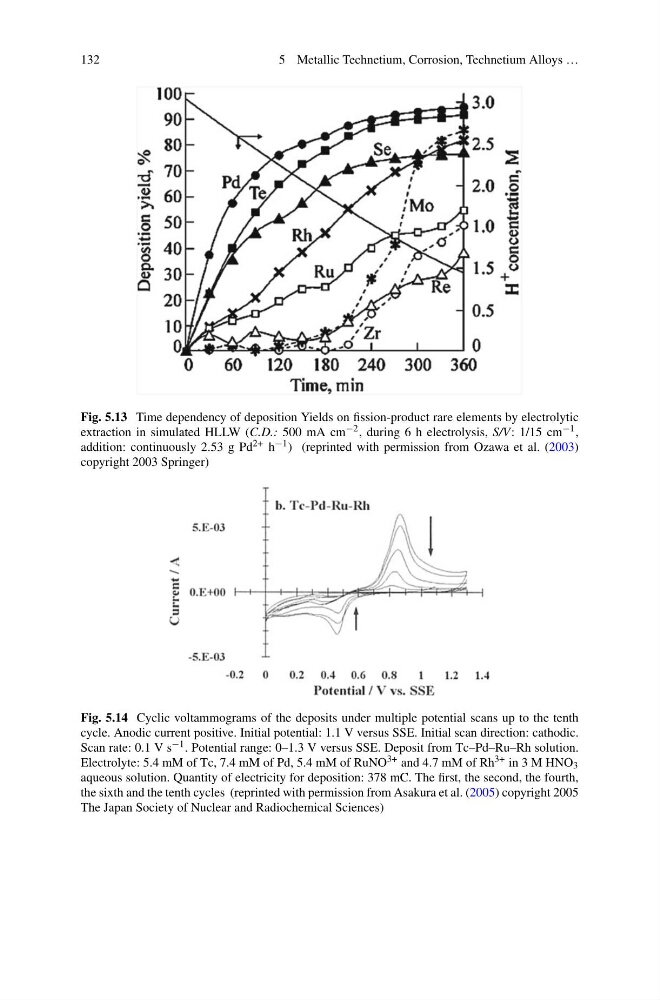

Fig. 5.13 Time dependency of deposition Yields on fission-product rare elements by electrolytic
extraction in simulated HLLW (C.D.: 500 mA cm −2 , during 6 h electrolysis, S/V: 1/15 cm −1 ,
addition: continuously 2.53 g Pd 2+ h −1 ) (reprinted with permission from Ozawa et al. (2003)
copyright 2003 Springer)
Fig. 5.14 Cyclic voltammograms of the deposits under multiple potential scans up to the tenth
cycle. Anodic current positive. Initial potential: 1.1 V versus SSE. Initial scan direction: cathodic.
Scan rate: 0.1 V s −1 . Potential range: 0–1.3 V versus SSE. Deposit from Tc–Pd–Ru–Rh solution.
Electrolyte: 5.4 mM of Tc, 7.4 mM of Pd, 5.4 mM of RuNO 3+ and 4.7 mM of Rh 3+ in 3 M HNO 3
aqueous solution. Quantity of electricity for deposition: 378 mC. The first, the second, the fourth,
the sixth and the tenth cycles (reprinted with permission from Asakura et al. (2005) copyright 2005
The Japan Society of Nuclear and Radiochemical Sciences)
