8 Measurement of Aerodynamic Forces and Moments

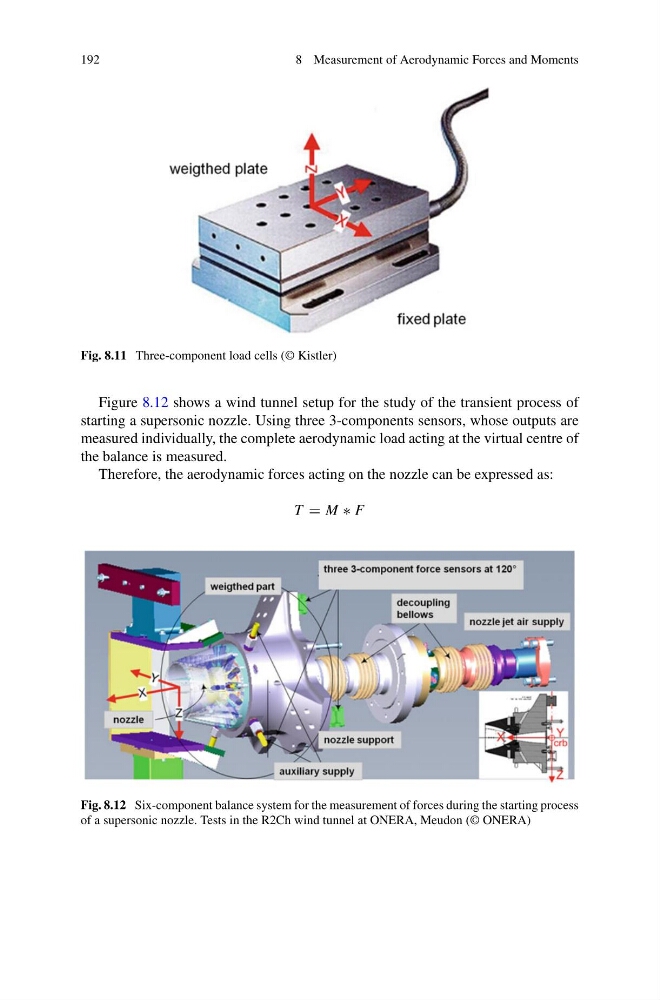

Fig. 8.11 Three-component load cells (© Kistler)
Figure 8.12 shows a wind tunnel setup for the study of the transient process of
starting a supersonic nozzle. Using three 3-components sensors, whose outputs are
measured individually, the complete aerodynamic load acting at the virtual centre of
the balance is measured.
Therefore, the aerodynamic forces acting on the nozzle can be expressed as:
T = M ∗ F
Fig. 8.12 Six-component balance system for the measurement of forces during the starting process
of a supersonic nozzle. Tests in the R2Ch wind tunnel at ONERA, Meudon (© ONERA)
