299
Characterization and Diagnosis Techniques

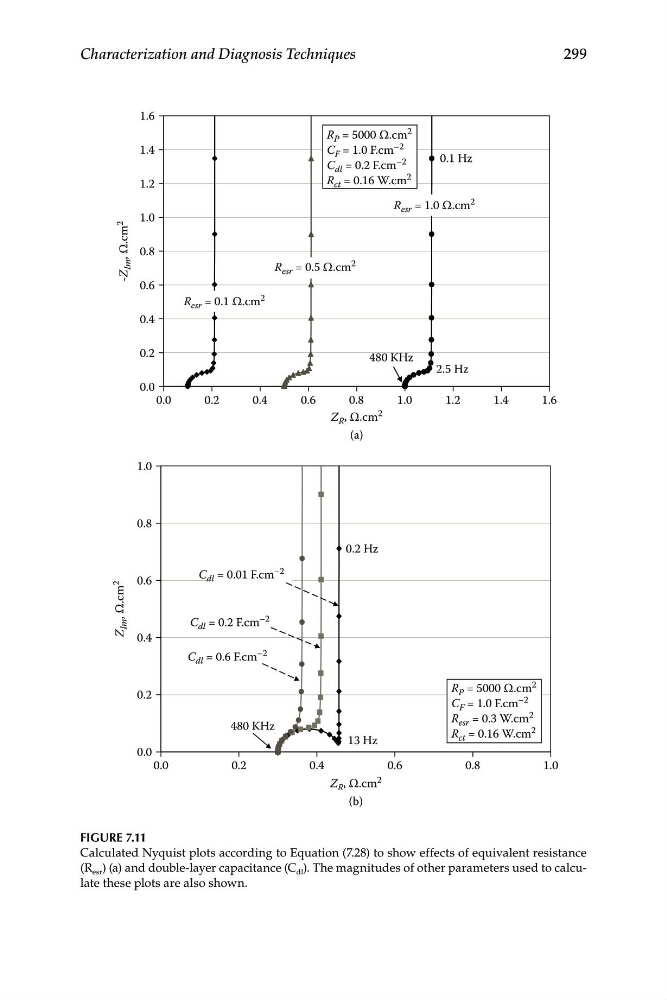

FIGURE 7.11
Calculated Nyquist plots according to Equation (7.28) to show effects of equivalent resistance
(R esr ) (a) and double-layer capacitance (C dl ). The magnitudes of other parameters used to calculate these plots are also shown.
