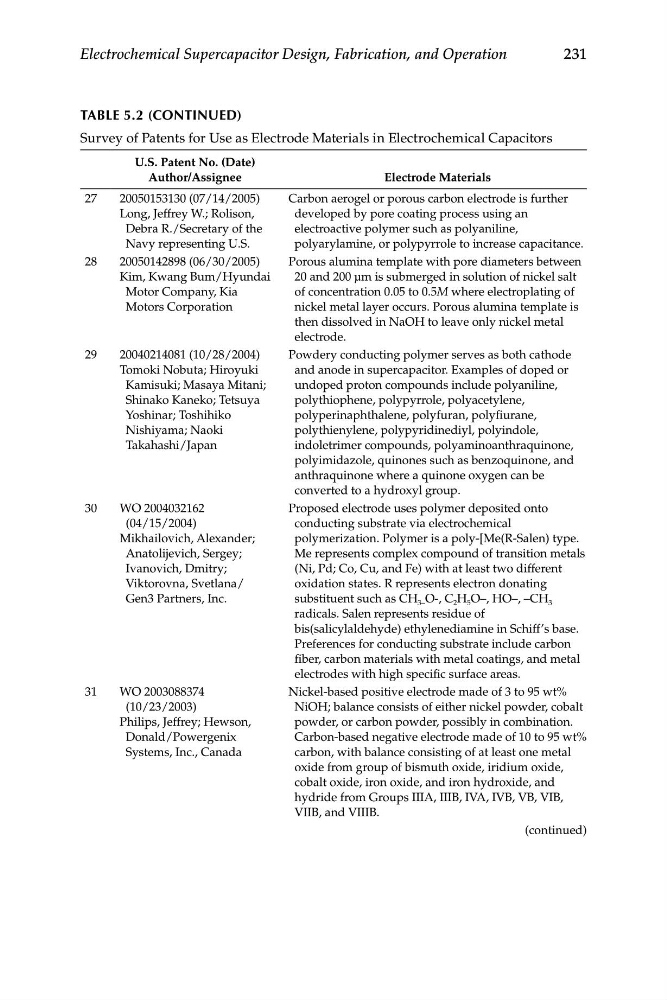

TABLE 5.2 (CONTINUED)
Survey of Patents for Use as Electrode Materials in Electrochemical Capacitors
U.S. Patent No. (Date)
Author/Assignee
Electrode Materials
27
20050153130 (07/14/2005)
Carbon aerogel or porous carbon electrode is further
Long, Jeffrey W.; Rolison,
developed by pore coating process using an
Debra R./Secretary of the
electroactive polymer such as polyaniline,
Navy representing U.S.
polyarylamine, or polypyrrole to increase capacitance.
28
20050142898 (06/30/2005)
Porous alumina template with pore diameters between
Kim, Kwang Bum/Hyundai
20 and 200 μm is submerged in solution of nickel salt
Motor Company, Kia
of concentration 0.05 to 0.5M where electroplating of
Motors Corporation
nickel metal layer occurs. Porous alumina template is
then dissolved in NaOH to leave only nickel metal
electrode.
29
20040214081 (10/28/2004)
Powdery conducting polymer serves as both cathode
Tomoki Nobuta; Hiroyuki
and anode in supercapacitor. Examples of doped or
Kamisuki; Masaya Mitani;
undoped proton compounds include polyaniline,
Shinako Kaneko; Tetsuya
polythiophene, polypyrrole, polyacetylene,
Yoshinar; Toshihiko
polyperinaphthalene, polyfuran, polyfiurane,
Nishiyama; Naoki
polythienylene, polypyridinediyl, polyindole,
Takahashi/Japan
indoletrimer compounds, polyaminoanthraquinone,
polyimidazole, quinones such as benzoquinone, and
anthraquinone where a quinone oxygen can be
converted to a hydroxyl group.
30
WO 2004032162
Proposed electrode uses polymer deposited onto
(04/15/2004)
conducting substrate via electrochemical
Mikhailovich, Alexander;
polymerization. Polymer is a poly-[Me(R-Salen) type.
Anatolijevich, Sergey;
Me represents complex compound of transition metals
Ivanovich, Dmitry;
(Ni, Pd; Co, Cu, and Fe) with at least two different
Viktorovna, Svetlana/
oxidation states. R represents electron donating
Gen3 Partners, Inc.
substituent such as CH 3– O-, C 2 H 5 O–, HO–, –CH 3
radicals. Salen represents residue of
bis(salicylaldehyde) ethylenediamine in Schiff’s base.
Preferences for conducting substrate include carbon
fiber, carbon materials with metal coatings, and metal
electrodes with high specific surface areas.
31
WO 2003088374
Nickel-based positive electrode made of 3 to 95 wt%
(10/23/2003)
NiOH; balance consists of either nickel powder, cobalt
Philips, Jeffrey; Hewson,
powder, or carbon powder, possibly in combination.
Donald/Powergenix
Carbon-based negative electrode made of 10 to 95 wt%
Systems, Inc., Canada
carbon, with balance consisting of at least one metal
oxide from group of bismuth oxide, iridium oxide,
cobalt oxide, iron oxide, and iron hydroxide, and
hydride from Groups IIIA, IIIB, IVA, IVB, VB, VIB,
VIIB, and VIIIB.
(continued)
