U.S. Patent No. (Date)
Author/Assignee
Electrode Materials
21
20070139865 (06/21/2007)
Porous active carbon particles derived from various
Sakamoto, Ryuichi;
precursors and polytetrafluoroethylene are used as
Takeishi, Minoru;
electrode material and binder material, respectively.
Koshimizu, Masahiro/
Fluoro rubbers such as vinylidene fluoride,
TDK Corporation, Japan
hexafluoropropylene, and tetrafluoropropylene can be
used as binder. Specific surface area of porous
particles is preferably between 2000 and 2500 m 2 /g to
obtain high volume capacity.
22
20070134151 (06/14/2007)
Halogenated polymers such as poly(vinylidene fluoride
Jo, Seong-Mu; Kim,
and poly(vinylidenefluoride-co-hexafluoropropylene)
Dong-Young; Chin,
with preferred diameter of 1 to 1000 nm are mixed
Byung-Doo; Hong,
with graphitizing metal nanograin catalyst (Pt, Ru, Cu,
Sung-Eun/Korea Institute
Fe, Ni, Co, Pd, W, Ir, Rh, Sr, Ce, Pr, Nd, Sm, Re, B, Al),
of Science and
catalyst precursor (metal chlorides: CuCl 2 , COCl 2 ,
Technology, South Korea
OsCl 3 , CrCl 2 ,FeCl 3 ), metal nitrides: Fe(NO 3 ) 3 and
Pd(NO 3 ) 2 ) or organic metal compounds such as iron
acetylacetonate. Chosen mixture is electrospun at
charge of 9 kV, and resulting fiber treated and heated
at carbonizing temperature between 800 and 1800°C in
N 2 . The resulting excellent ultrafine carbon fiber can
then be processed as electrode material.
23
20070095657 (05/03/2007)
Ultrafine metal fiber matrix of titanium dioxide
Dong-Young Kim;
deposited electrochemically acts as double-layer
Seong-Mu Jo; Byung-Doo
electrode with wide specific surface area. Next, a metal
Chin; Young-Rack Ahn/
oxide such as ruthenium oxide, rubidium oxide,
Korea Institute of Science
iridium oxide, nickel oxide, cobalt oxide, manganese
and Technology, South
oxide, or vanadium oxide can be deposited onto
Korea
substrate by electrodeposition.
24
WO 2006135439
Nanotubes reacted with ozone at temperatures from 0
(12/21/2006)
to 100°C are used develop aggregates. Dispersing
Ma, Jun; Chishti, Asif;
product into polyethyleneimine cellulose forms
Ngaw, Lein; Fischer, Allen;
mixture. Pyrolyzing product at temperatures above
Braden, Robert/Hyperion
650°C results in rigid pure carbon structure as
Catalysis International Inc.
electrode material. Additional solids can be added to
mix before pyrolyzation to increase capacitance.
25
20060250750 (11/06/2006)
Polyimide silicone from polyamic acid precursor is mixed
Yoshinori Yonedu;
with conductive material, preferably carbon or transition
Michihiro Sugou;
metal oxide to create a minimal resistance active
Yoshinori Ogawa/
electrode. Mass ratio of conductive material to polyimide
Shin-Etsu Chemical Co.
silicone is preferably 99:1 to 80:20.
26
20060098389 (05/11/2006)
Single wall carbon nanotubes mixed with copolymer
Liu, Tao; Kumar, Satish/
such as acrylonitrile or methylacrylate are made into a
Georgia Tech Research
suspension and cast on glass plate for film
Corporation
development. Subsequent activation of films by CO 2
and Ar at 700°C for 8 min. tested at current density of
01 mA to yield 167 F/g.
230

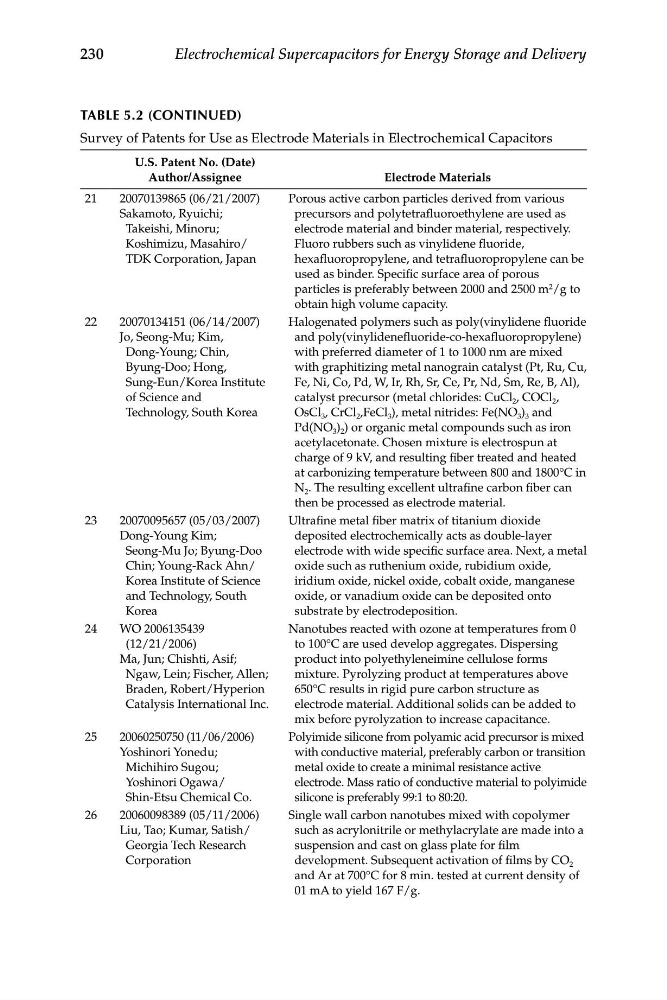

Electrochemical Supercapacitors for Energy Storage and Delivery
TABLE 5.2 (CONTINUED)
Survey of Patents for Use as Electrode Materials in Electrochemical Capacitors
Author/Assignee
Electrode Materials
21
20070139865 (06/21/2007)
Porous active carbon particles derived from various
Sakamoto, Ryuichi;
precursors and polytetrafluoroethylene are used as
Takeishi, Minoru;
electrode material and binder material, respectively.
Koshimizu, Masahiro/
Fluoro rubbers such as vinylidene fluoride,
TDK Corporation, Japan
hexafluoropropylene, and tetrafluoropropylene can be
used as binder. Specific surface area of porous
particles is preferably between 2000 and 2500 m 2 /g to
obtain high volume capacity.
22
20070134151 (06/14/2007)
Halogenated polymers such as poly(vinylidene fluoride
Jo, Seong-Mu; Kim,
and poly(vinylidenefluoride-co-hexafluoropropylene)
Dong-Young; Chin,
with preferred diameter of 1 to 1000 nm are mixed
Byung-Doo; Hong,
with graphitizing metal nanograin catalyst (Pt, Ru, Cu,
Sung-Eun/Korea Institute
Fe, Ni, Co, Pd, W, Ir, Rh, Sr, Ce, Pr, Nd, Sm, Re, B, Al),
of Science and
catalyst precursor (metal chlorides: CuCl 2 , COCl 2 ,
Technology, South Korea
OsCl 3 , CrCl 2 ,FeCl 3 ), metal nitrides: Fe(NO 3 ) 3 and
Pd(NO 3 ) 2 ) or organic metal compounds such as iron
acetylacetonate. Chosen mixture is electrospun at
charge of 9 kV, and resulting fiber treated and heated
at carbonizing temperature between 800 and 1800°C in
N 2 . The resulting excellent ultrafine carbon fiber can
then be processed as electrode material.
23
20070095657 (05/03/2007)
Ultrafine metal fiber matrix of titanium dioxide
Dong-Young Kim;
deposited electrochemically acts as double-layer
Seong-Mu Jo; Byung-Doo
electrode with wide specific surface area. Next, a metal
Chin; Young-Rack Ahn/
oxide such as ruthenium oxide, rubidium oxide,
Korea Institute of Science
iridium oxide, nickel oxide, cobalt oxide, manganese
and Technology, South
oxide, or vanadium oxide can be deposited onto
Korea
substrate by electrodeposition.
24
WO 2006135439
Nanotubes reacted with ozone at temperatures from 0
(12/21/2006)
to 100°C are used develop aggregates. Dispersing
Ma, Jun; Chishti, Asif;
product into polyethyleneimine cellulose forms
Ngaw, Lein; Fischer, Allen;
mixture. Pyrolyzing product at temperatures above
Braden, Robert/Hyperion
650°C results in rigid pure carbon structure as
Catalysis International Inc.
electrode material. Additional solids can be added to
mix before pyrolyzation to increase capacitance.
25
20060250750 (11/06/2006)
Polyimide silicone from polyamic acid precursor is mixed
Yoshinori Yonedu;
with conductive material, preferably carbon or transition
Michihiro Sugou;
metal oxide to create a minimal resistance active
Yoshinori Ogawa/
electrode. Mass ratio of conductive material to polyimide
Shin-Etsu Chemical Co.
silicone is preferably 99:1 to 80:20.
26
20060098389 (05/11/2006)
Single wall carbon nanotubes mixed with copolymer
Liu, Tao; Kumar, Satish/
such as acrylonitrile or methylacrylate are made into a
Georgia Tech Research
suspension and cast on glass plate for film
Corporation
development. Subsequent activation of films by CO 2
and Ar at 700°C for 8 min. tested at current density of
01 mA to yield 167 F/g.
230
Electrochemical Supercapacitors for Energy Storage and Delivery
TABLE 5.2 (CONTINUED)
Survey of Patents for Use as Electrode Materials in Electrochemical Capacitors
