U.S. Patent No. (Date)
Author/Assignee
Electrode Materials
14
20090136834 (05/28/2009)
Carbon monofluoride, conductivity additive, and
Coowar, Fazlil Ahmode;
polyvinylidene fluoride binder were used to create a
Blackmore, Paul David/
paste and subsequently cast on aluminum foil to
Qinetiq Limited, UK
create cathode.
15
20080287607 (11/20/2008)
Precursor polyacrylonitrile dispersed in
Lien Tai Chen; Shu-Hui
dimethylforamide or dimethylacetamide undergoes
Cheng; Tun-Fun Way; Tzu
nanospinning process. Spun fibers are stabilized at
Hsien Han/Industrial
270°C, and activated through heating at 1000°C.
Technology Research
Evaluation of capacitance using aqueous electrolyte
Institute
yields >300 F/g.
16
20100134954 (10/25/2008)
Supercapacitor electrode is constructed of mesoporous
Chris Wright; Jennifer
metal (nickel and its oxides, hydroxides, and
Sweeney; Daniel Peat;
oxyhydroxides) or metal compound using carbon;
Phillip Andrew Nelson/
volume ratios are preferably 15:1 to 50:1. Capacitance
Nano-Tecture Ltd.
of Ni electrode measured at current density of 2092
mA/cm 2 to be 1635 F/cm 3 . Capacitance of carbon
electrode measured at same current density was 106
F/cm 3 .
17
20080232028 (09/25/2008)
Carbon nanosheet of <2 nm thickness and specific
Zhao Xin/College of
surface area between 1000 and 2600 m 2 /g attached to
William & Mary, U.S.
smooth carbon fibers by thermal chemical deposition
or microwave plasma chemical deposition. Composite
is then used as electrode in full cell supercapacitor.
18
20080218939 (09/11/2008)
Nickel or gold nanowire electrode between 0.02 and 0.2
Marcus, Matthew S.; Gu,
μm wide is created using porous alumina or silica
Yuandong/Honeywell
membrane. Dissolving membrane leaves metal
International, U.S.
nanowires to be used as electrode.
19
20080010796 (01/17/2008)
Functionalized CNTs are attached to metal substrate
Pan, Ning; Du, Chunsheng/
(nickel, copper, aluminum, gold, or platinum) by
University of
electrophoretic deposition after dispersion and
California, U.S.
charging in a high concentration colloidal suspension
take place. The composite is baked onto metal
substrate at 500°C in H 2 .
20
20070148335(06/28/2007)
Electrode is processed by spreading a paste containing
Tanaka, Hideki; Katai,
activated carbon, polytetrafluoroethylene (binder),
Kazuo/Tdk
and carbon black (conducting agent) mixed in a
Corporation, Japan
solvent (n-methyl-2-pyrolidone) onto a current
collector such as aluminum, then solvent is evaporated
and material compressed into an electrode.
(continued)
229
Electrochemical Supercapacitor Design, Fabrication, and Operation

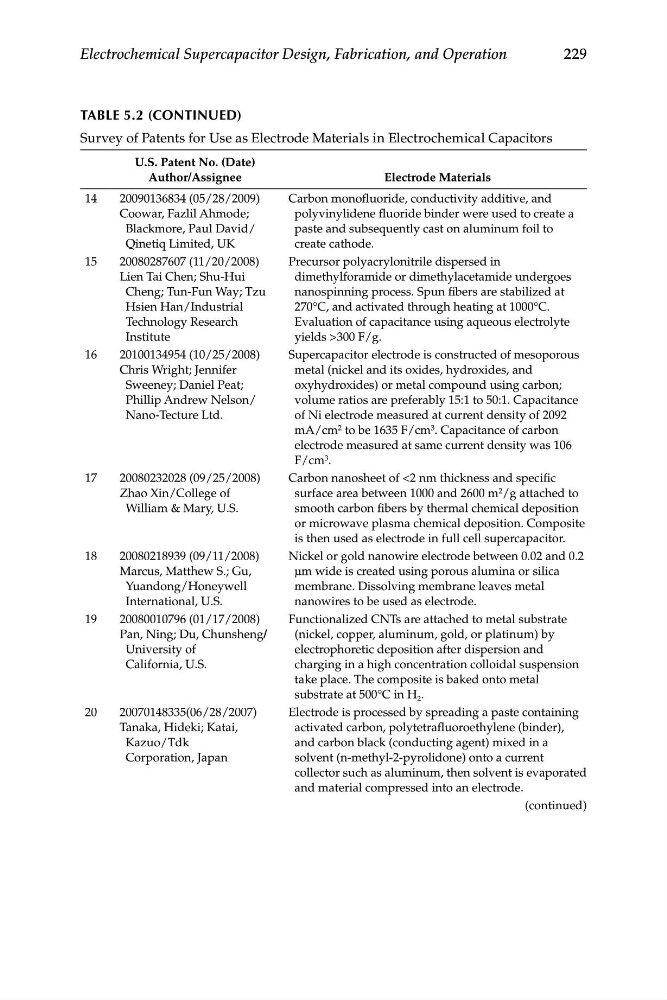

TABLE 5.2 (CONTINUED)
Survey of Patents for Use as Electrode Materials in Electrochemical Capacitors
