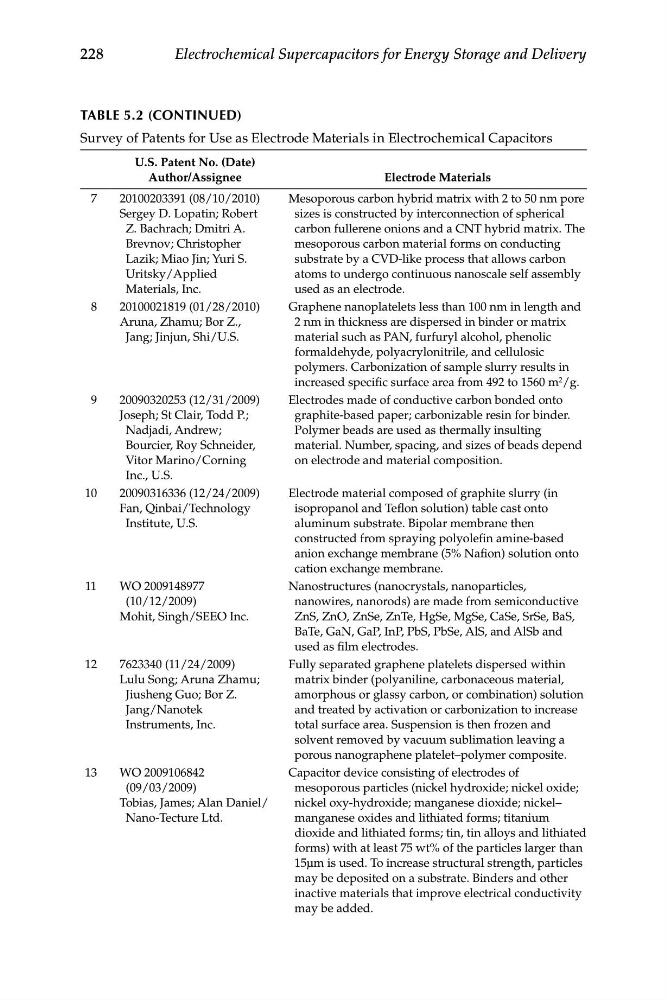

Electrochemical Supercapacitors for Energy Storage and Delivery
TABLE 5.2 (CONTINUED)
Survey of Patents for Use as Electrode Materials in Electrochemical Capacitors
U.S. Patent No. (Date)
Author/Assignee
Electrode Materials
7
20100203391 (08/10/2010)
Mesoporous carbon hybrid matrix with 2 to 50 nm pore
Sergey D. Lopatin; Robert
sizes is constructed by interconnection of spherical
Z. Bachrach; Dmitri A.
carbon fullerene onions and a CNT hybrid matrix. The
Brevnov; Christopher
mesoporous carbon material forms on conducting
Lazik; Miao Jin; Yuri S.
substrate by a CVD-like process that allows carbon
Uritsky/Applied
atoms to undergo continuous nanoscale self assembly
Materials, Inc.
used as an electrode.
8
20100021819 (01/28/2010)
Graphene nanoplatelets less than 100 nm in length and
Aruna, Zhamu; Bor Z.,
2 nm in thickness are dispersed in binder or matrix
Jang; Jinjun, Shi/U.S.
material such as PAN, furfuryl alcohol, phenolic
formaldehyde, polyacrylonitrile, and cellulosic
polymers. Carbonization of sample slurry results in
increased specific surface area from 492 to 1560 m 2 /g.
9
20090320253 (12/31/2009)
Electrodes made of conductive carbon bonded onto
Joseph; St Clair, Todd P.;
graphite-based paper; carbonizable resin for binder.
Nadjadi, Andrew;
Polymer beads are used as thermally insulting
Bourcier, Roy Schneider,
material. Number, spacing, and sizes of beads depend
Vitor Marino/Corning
on electrode and material composition.
Inc., U.S.
10
20090316336 (12/24/2009)
Electrode material composed of graphite slurry (in
Fan, Qinbai/Technology
isopropanol and Teflon solution) table cast onto
Institute, U.S.
aluminum substrate. Bipolar membrane then
constructed from spraying polyolefin amine-based
anion exchange membrane (5% Nafion) solution onto
cation exchange membrane.
11
WO 2009148977
Nanostructures (nanocrystals, nanoparticles,
(10/12/2009)
nanowires, nanorods) are made from semiconductive
Mohit, Singh/SEEO Inc.
ZnS, ZnO, ZnSe, ZnTe, HgSe, MgSe, CaSe, SrSe, BaS,
BaTe, GaN, GaP, InP, PbS, PbSe, AlS, and AlSb and
used as film electrodes.
12
7623340 (11/24/2009)
Fully separated graphene platelets dispersed within
Lulu Song; Aruna Zhamu;
matrix binder (polyaniline, carbonaceous material,
Jiusheng Guo; Bor Z.
amorphous or glassy carbon, or combination) solution
Jang/Nanotek
and treated by activation or carbonization to increase
Instruments, Inc.
total surface area. Suspension is then frozen and
solvent removed by vacuum sublimation leaving a
porous nanographene platelet–polymer composite.
13
WO 2009106842
Capacitor device consisting of electrodes of
(09/03/2009)
mesoporous particles (nickel hydroxide; nickel oxide;
Tobias, James; Alan Daniel/
nickel oxy-hydroxide; manganese dioxide; nickel–
Nano-Tecture Ltd.
manganese oxides and lithiated forms; titanium
dioxide and lithiated forms; tin, tin alloys and lithiated
forms) with at least 75 wt% of the particles larger than
15μm is used. To increase structural strength, particles
may be deposited on a substrate. Binders and other
inactive materials that improve electrical conductivity
may be added.
