On the Quantum Capacitance of Quantum Wire Field-Effect …
101

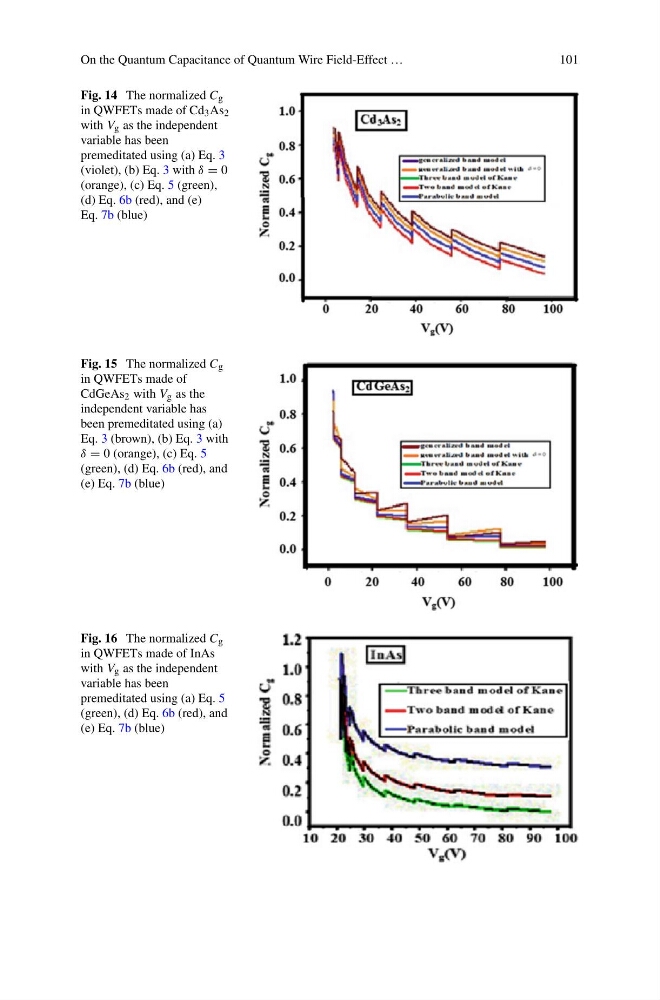

Fig. 14 The normalized C g
in QWFETs made of Cd 3 As 2
with V g as the independent
variable has been
premeditated using (a) Eq. 3
(violet), (b) Eq. 3 with δ = 0
(orange), (c) Eq. 5 (green),
(d) Eq. 6b (red), and (e)
Eq. 7b (blue)
Fig. 15 The normalized C g
in QWFETs made of
CdGeAs 2 with V g as the
independent variable has
been premeditated using (a)
Eq. 3 (brown), (b) Eq. 3 with
δ = 0 (orange), (c) Eq. 5
(green), (d) Eq. 6b (red), and
(e) Eq. 7b (blue)
Fig. 16 The normalized C g
in QWFETs made of InAs
with V g as the independent
variable has been
premeditated using (a) Eq. 5
(green), (d) Eq. 6b (red), and
(e) Eq. 7b (blue)
