5 Modeling of Mechanical Oscillatory Systems …

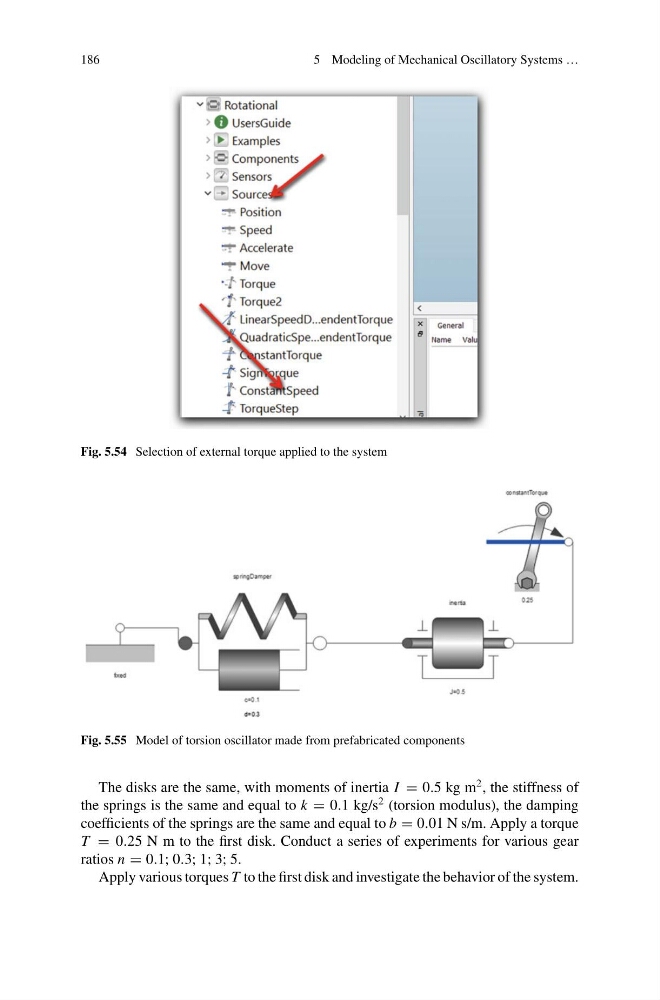

Fig. 5.54 Selection of external torque applied to the system
Fig. 5.55 Model of torsion oscillator made from prefabricated components
The disks are the same, with moments of inertia I = 0.5 kg m
2 , the stiffness of
the springs is the same and equal to k = 0.1 kg/s
2 (torsion modulus), the damping
coefficients of the springs are the same and equal to b = 0.01 N s/m. Apply a torque
T = 0.25 N m to the first disk. Conduct a series of experiments for various gear
ratios n = 0.1; 0.3; 1; 3; 5.
Apply various torques T to the first disk and investigate the behavior of the system.
