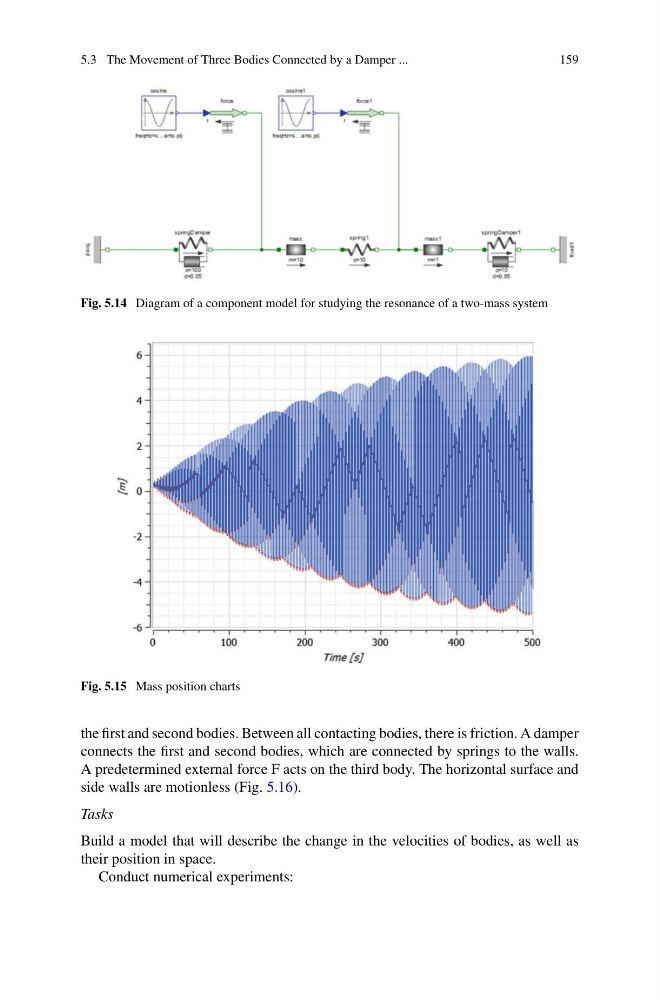

5.3 The Movement of Three Bodies Connected by a Damper ...
159
Fig. 5.14 Diagram of a component model for studying the resonance of a two-mass system
Fig. 5.15 Mass position charts
the first and second bodies. Between all contacting bodies, there is friction. A damper
connects the first and second bodies, which are connected by springs to the walls.
A predetermined external force F acts on the third body. The horizontal surface and
side walls are motionless (Fig. 5.16).
Tasks
Build a model that will describe the change in the velocities of bodies, as well as
their position in space.
Conduct numerical experiments:
