16 Potential Transboundary Impacts of the Grand Ethiopian …
373

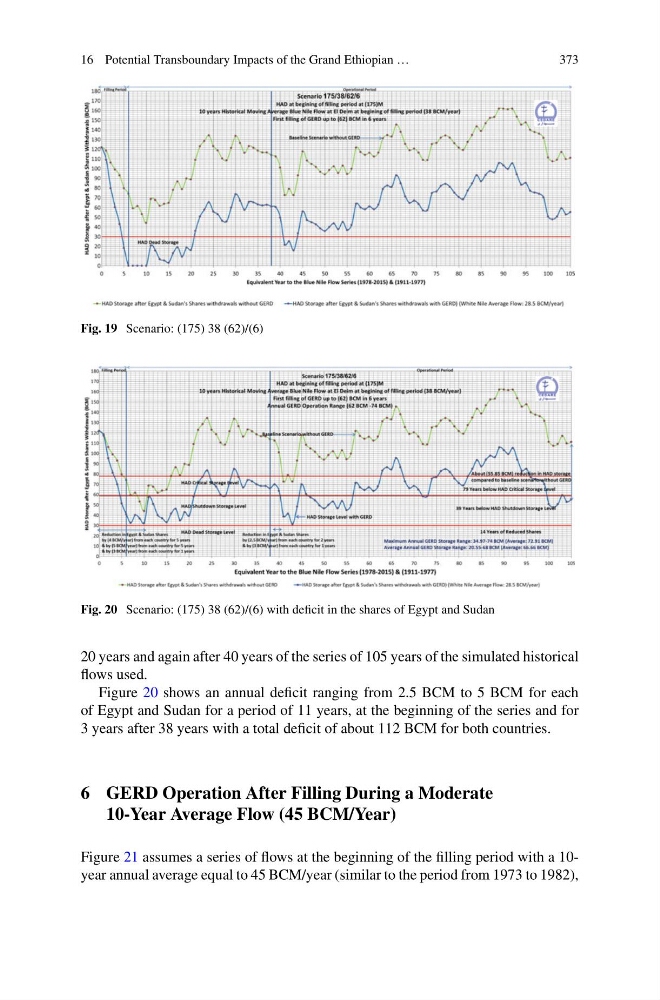

Fig. 19 Scenario: (175) 38 (62)/(6)
Fig. 20 Scenario: (175) 38 (62)/(6) with deficit in the shares of Egypt and Sudan
20 years and again after 40 years of the series of 105 years of the simulated historical
flows used.
Figure 20 shows an annual deficit ranging from 2.5 BCM to 5 BCM for each
of Egypt and Sudan for a period of 11 years, at the beginning of the series and for
3 years after 38 years with a total deficit of about 112 BCM for both countries.
6 GERD Operation After Filling During a Moderate
10-Year Average Flow (45 BCM/Year)
Figure 21 assumes a series of flows at the beginning of the filling period with a 10year annual average equal to 45 BCM/year (similar to the period from 1973 to 1982),
