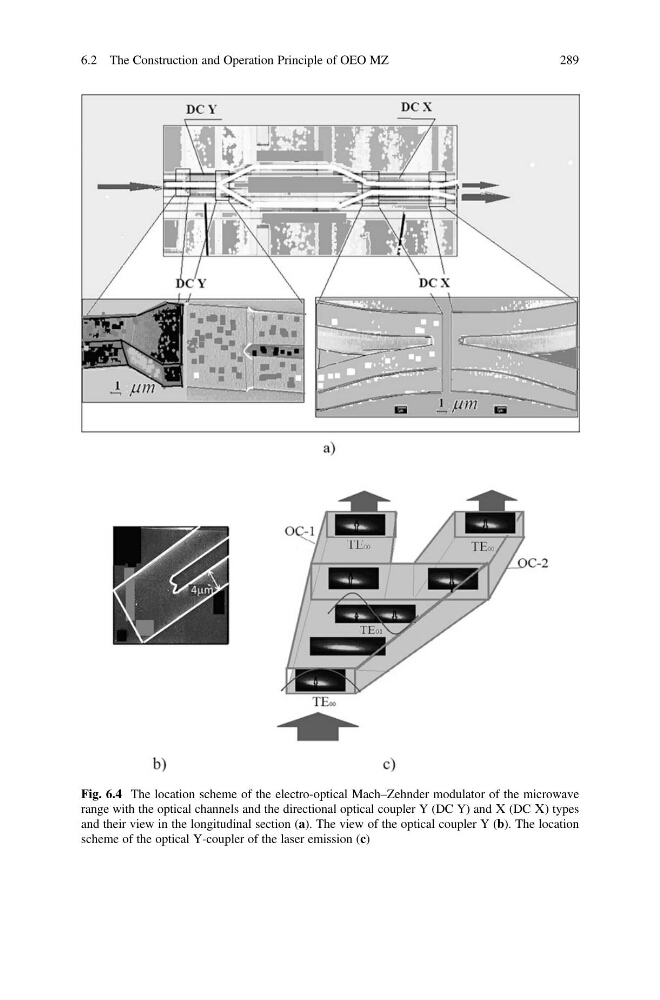

Fig. 6.4 The location scheme of the electro-optical Mach–Zehnder modulator of the microwave
range with the optical channels and the directional optical coupler Y (DC Y) and Х (DC Х) types
and their view in the longitudinal section (a). The view of the optical coupler Y (b). The location
scheme of the optical Y-coupler of the laser emission (c)
